Description
Introduction

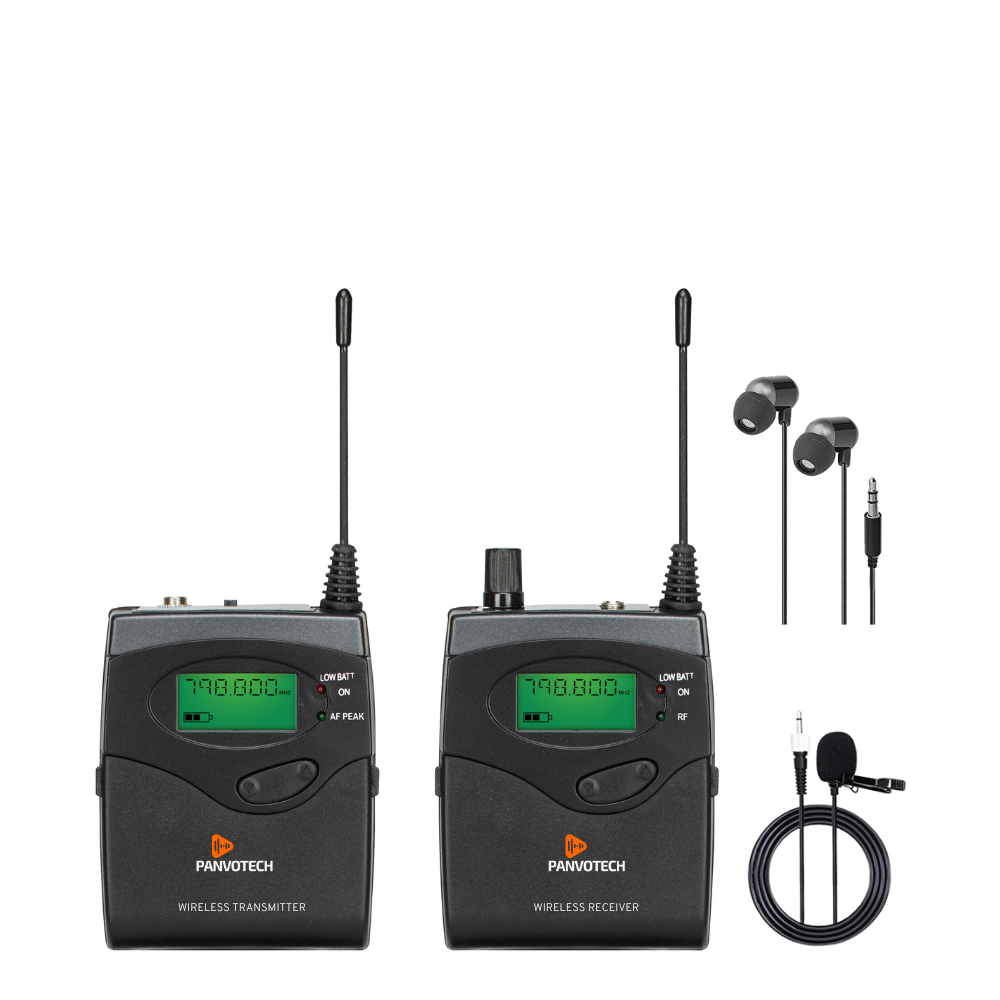

This portable wireless transmitter & receiver comes with UHF band, 40 selectable frequencies, which allows to pick any clear & stable channel without any wireless interference. Each transmitter works with unlimited receivers makes a variety of applications from tour guide, assistive listening, interviewing, anywhere you want wireless audio transmission with portable devices.
Key Features
1.UHF band (UHF798~830MHz)
2. 70-80m (340 ft.) range
3. Ideal for tour guide, stage monitoring, etc.
Specifications
|
Model Number |
WTS-200 |
|
Receiver |
Tour guide receiver bodypack |
|
Oscillation mode |
PLL synthesized |
|
Frequency stability |
±0.005% |
|
Frequency range |
UHF798~830MHz |
|
Frequency alteration |
32MHz |
|
Operate mode |
manual adjusting |
|
Receiving way |
single tuning |
|
Sensitivity |
Deviation 25KHz, when connected 7dBuV, S/N>78dB |
|
Max Deviation |
±48KHz |
|
S/N ratio |
>94dB(1KHz-A) |
|
T.H.D |
<3%@1KHz |
|
Frequency response |
80Hz~15KHz±3dB |
|
Transmitter output power |
2×50mW@1KHz |
|
Headphone impedance |
≥16Ω |
|
AF output |
3.5mmφjack |
|
Power supply: |
6.3mmφstereo phonic socket |
|
Current consumption |
3V/120mA |
