Description
Introduction

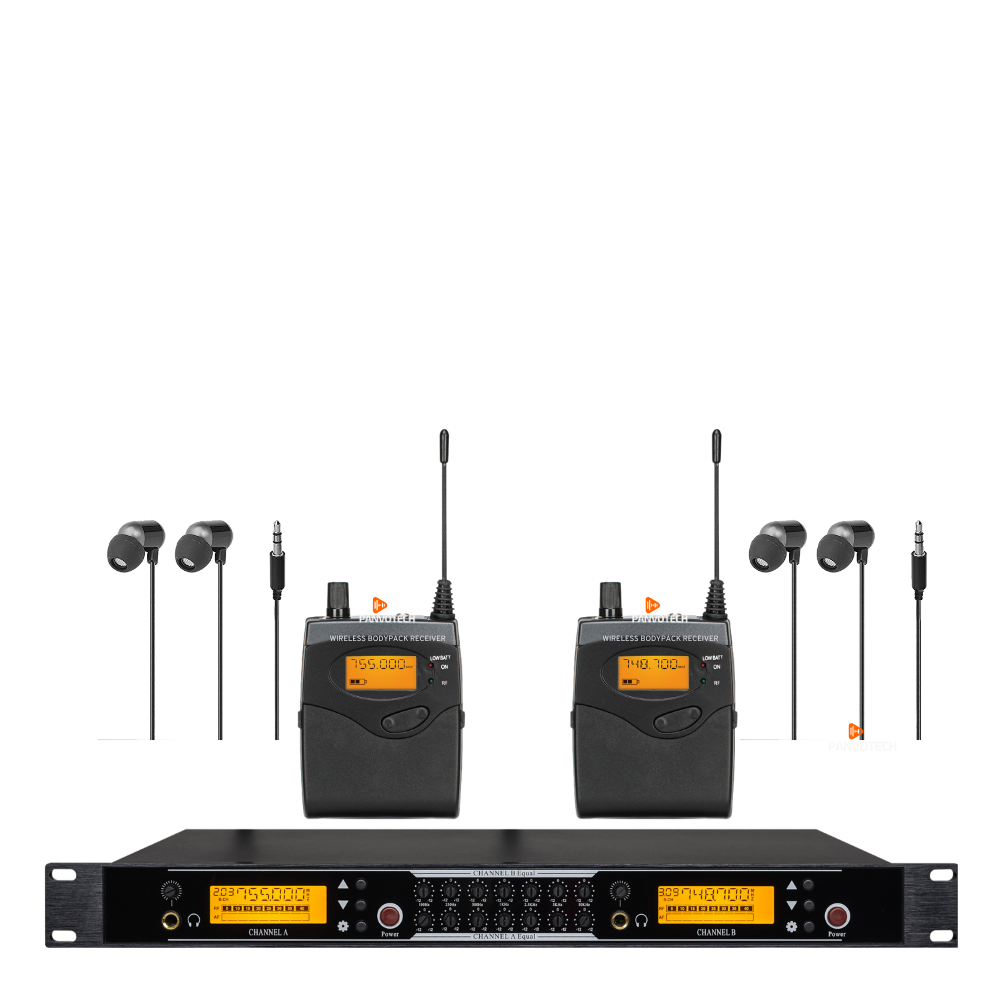

This Panvotech WIEM-620 comes with dual unit design for musicians & performers the freedom of wireless on-stage monitoring with easy-to-use components.
The desktop transmitter sends wireless audio to the bodypack receiver at a maximum distance of up to 300ft. Plus it allows you the to adjust bass /treble on transmitter as your want without doing that on mixer or other devices.
It is preset with 40 selectable frequencies in each unit which allows the use to pick a clear & interference-free channel for wireless audio transmission in mono. Transmitter is equipped with USB port for playing audio file in MP3 format & headphone jack available for real time monitoring.
Key Features
1. Crystal clear dual mono audio lasts throughout your whole performance.
2. 40 selectable frequencies makes it possible to pick a clean frequency.
3. EQ control on each channel allows to set your preferred input level
4. Headphone jack allows to staff to moniotr your performance simultaneously
5. Easy frequency pair by press to be in the same CH in the same Group
6. Multiple bodypack receivers can be used with a single transmitter
7. Up to 160ft free operation range.
8. Independence RF level on each channel
9. Rugged-built receivers and bodypacks with a sleek design.
Specifications
Transmitter
|
Frequency Range |
500 - 950MHz |
|
Channels |
40 selectable channels |
|
RF Power |
100mw |
|
Audio Input |
XLR &Φ6.3mm |
|
Frequency Response |
50Hz -15kHz(±3dB) |
|
Power Consumption |
DC12V/600mA |
|
Working Tempreture |
-10oC~40oC |
|
Antenna Port |
BNC |
|
Antenna lmpendence |
50Ω |
Receiver
|
Frequency Range |
500 - 950MHz |
|
Channels |
40 selectable channels |
|
Sensitivity |
<-96dBm |
|
Frequency Response |
150Hz -15kHz(±3dB) |
|
Power Consumption |
3V/80mA±10mA |
|
Power Supply |
-1.5V AA*2 |
|
Earphone Output |
1/8" Jack |
|
Earphone Output Power |
RL=32Ω,30mW |
|
Working Tempreture |
-10oC~40oC |
