Description
Introduction

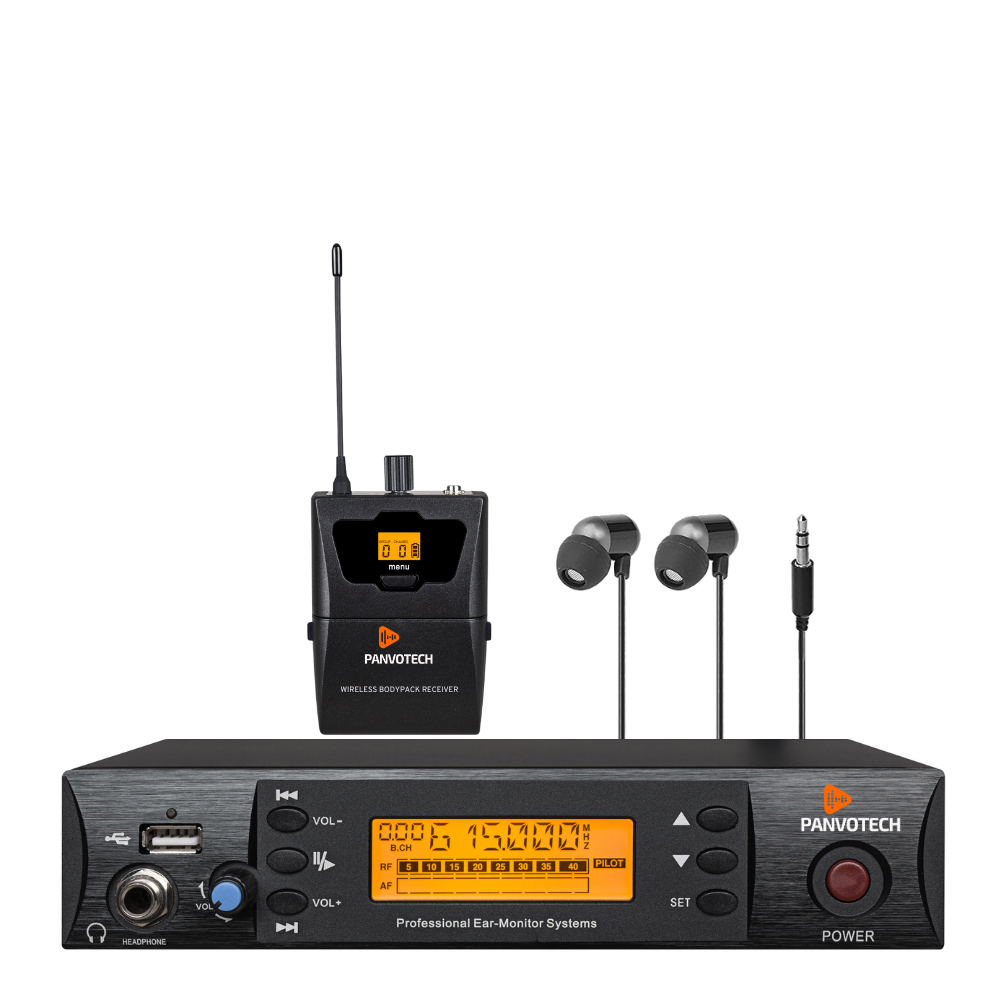

This Panvotech WIEM-600 delivers musicians & performers the freedom of wireless on-stage monitoring with easy-to-use components. The desktop transmitter sends wireless audio to the bodypack receiver at a maximum distance of up to 300ft. It is preset with 40 selectable frequencies which allows the use to pick a clear & interference-free channel for wireless audio transmission in mono. Transmitter is equipped with USB port for playing audio file in MP3 format & headphone jack available for real time monitoring.
Key Features
1. Crystal clear mono audio lasts throughout your whole performance.
2. 40 selectable frequencies makes it possible to pick a clean frequency.
3. USB port on transmitter delivers possibility of playing music by USB flash
4. Headphone jack allows to staff to moniotr your performance simultaneously
5. Easy frequency pair by press to be in the same CH in the same Group
6. Multiple bodypack receivers can be used with a single transmitter
7. Up to 160ft free operation range.
8. 2 mix outputs with RF power switch on rear panel
9. Rugged-built receivers and bodypacks with a sleek design.
Specifications
Transmitter
|
Frequency Range |
470 - 960MHz |
|
Channels |
40 selectable channels |
|
RF Power |
3 levels (20/17/10 dB) |
|
lnput Gain |
2-levle switchable |
|
Audio Input |
USB/ XLR/ 48V/RAC |
|
Frequency Response |
150Hz -15kHz(±3dB) |
|
Power Consumption |
DC12V/MAX:250mA ±10mA |
|
Working Tempreture |
-10oC~40oC |
|
Antenna Port |
BNC |
|
Antenna lmpendence |
50Ω |
Receiver
|
Frequency Range |
470 - 960MHz |
|
Channels |
40 selectable channels |
|
Sensitivity |
<-96dBm |
|
Frequency Response |
150Hz -15kHz(±3dB) |
|
Power Consumption |
3V/80mA±10mA |
|
Power Supply |
-1.5V AA*2 |
|
Earphone Output Power |
RL=32Ω,30mW |
|
Working Tempreture |
-10oC~40oC |
