Description
Introduction

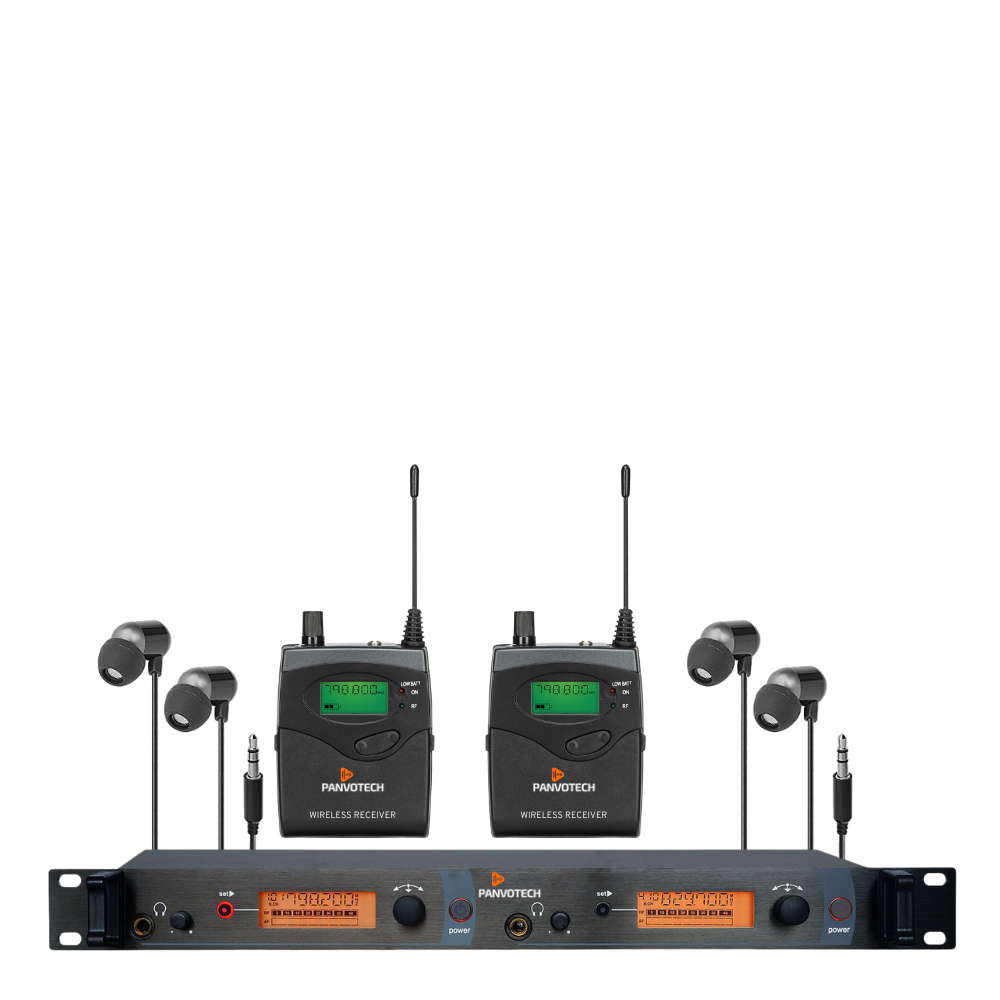

This in ear monitor is a dual unit design for musicians & performers the freedom of wireless on-stage monitoring with easy-to-use components. The desktop transmitter sends wireless audio to the bodypack receiver at a maximum distance of up to 300ft. It is preset with 40 selectable frequencies in each unit which allows the use to pick a clear & interference-free channel for wireless audio transmission in mono.
Key Features
1. UHF band, dual transmitter design,
2. 40 preset channels, 4 groups (10 channels in each group)
3. Mono transmission
4. Ideal for stage monitoring, tour guide, etc.
5. 19" rack unit design, easy to install.
Specifications
|
Transmitter |
In Ear-monitor transmitter |
|
Main body size |
1/2 unit rack design |
|
Group amount |
4 groups |
|
Transmitter case |
19" rack unit design |
|
Oscillation mode |
PLL synthesized |
|
Frequency stability |
±0.005% |
|
Frequency range |
UHF614~830MHz |
|
Frequency alteration |
32MHz |
|
Operate mode |
manual adjusting |
|
Receiving way |
single tuning |
|
Sensitivity |
Deviation 25KHz, when connected 7dBuV, S/N>78dB |
|
Max Deviation |
±48KHz |
|
Frequency response |
50Hz~15KHz±3dB |
|
Transmitter output power |
100mW |
|
AF input |
XLR, 6.3mmφjack |
|
Earphone output |
6.3mmφ mono jack |
|
Current consumption |
DC 12V/250mA |
|
Antenna socket |
BNC socket |
