Dual Wireless Lapel Microphone

Introduction

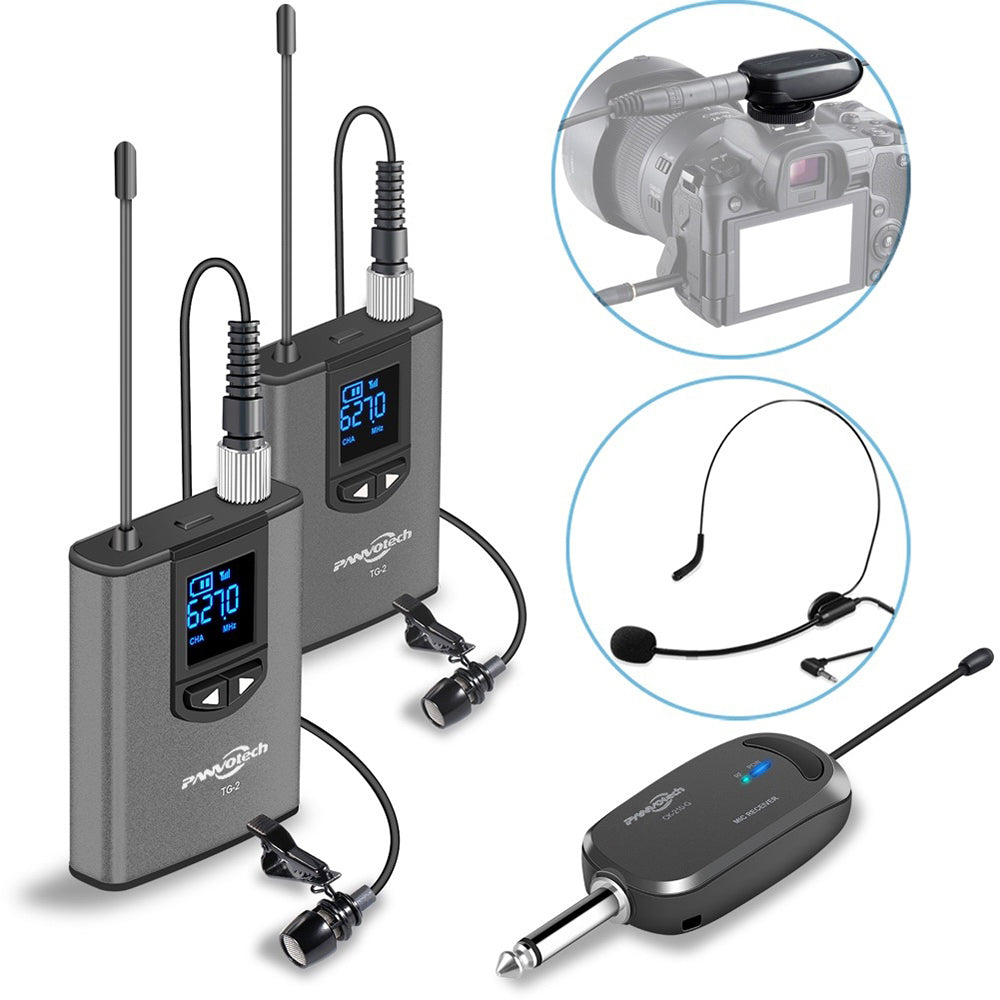

Panvotech UHF double channel wireless headset/clip microphone system comes with portable design,
rechargeable belt pack transmitters (headset / clip on microphone) and receiver (1/4” output plug).
Ideal for filming, vlogging, youtube recording, presentation, lecturing, training etc.
It is preset with mutl frequencies (Region Varies)

Key Features

1. 1. SUPERIOR SOUND & PERFORMANCE– Double uhf wireless lapel microphone delivers crystal clear sound & metal
   belt pack transmitter with mini receiver offer noise cancelling transmission range up to 130ft without feedback or distortion

1. 2. BEST CHOICE FOR VIDEO RECORDING  – Plug the head worn or clip microphone to the body pack transmitter & plug
   mini receiver with hot shoe mount to your DSLR camera or phone (with include adaptor/cable), you are ready to take your exciting video

1. 3. WIRELESS HEADSET & LAVALIER– Condenser headset microphone offers secure wear for vocal performance,
   clip on microphone offers invisibility on shirt collar, both make hands free to use in interview, classroom, gym, stage, church, meeting

1. 4. MUTI - APPLICATOINS- Wireless receiver with universal 1/4” plug works with mixer, PA speaker w/ 1/4 MIC IN Jack,
   and PC, smartphone, laptop (with adaptor included), ideal for presentation, preaching, training, fitness /exercise instructor, wedding

1. 5. SELECTABLE CHANNEL & VOLUME CONTROL– Double channel wireless microphone delivers multi frequencies & volume control,
   just press buttons on transmitter to select desired frequency & volume level to reach its best performance without interference

1. 6. Large Application- 1/4” output plug from this wireless microphone receiver works with any mixer, PA system, loud speaker,
   voice amplifier, karaoke machine only if they comes with 1/4” MIC IN input jack. It also works with DSLR Camera, PC, laptop, tablet,
   and smartphones (not for Android phones) with the included cable for audio recording, filming, interviewing, etc.

1. 7. RECHARGEABLE WIRELESS BODYPACK TRANSMITTER WITH VOLUME CONTROL - Both transmitter & receiver are rechargeable
   and powered by built-in battery. Battery status, frequency are displayed on LCD of the body pack transmitter.

Specifications

Wireless Receiver

Audio Interference	6.35MM (1/4” Plug)
Power Supply	3.7V built-in lithium battery
Dimensions	64 x 32 x 17MM (W/T 1/4” Plug)
Continuous Working Time	Approx. 4 hours
Charging Method	Mini USB

Body pack Transmitter

Radio Frequency Range	UHF BAND (DQPSK Processing Technology)
Selectable Radio Frequencies	5 – 20 Varies by Region
Audio Frequency Response	75Hz-18kHZ +3dB
Sensitivity	-69dB+/- 3dB
Max. Deviation Range	+/-50 kHZ
THD	<1.0%
Working Range	Max. 40M (130ft)
Power Supply	3.7V built-in lithium battery
Continuous Working Time	Approx. 5 hours
Dimensions	65MM X 52 MM (2.56 x 2.05 INCH)
Material	High Strength ABS plastics & Aluminum Housing
Charging Method	Mini USB
