Description
Introduction

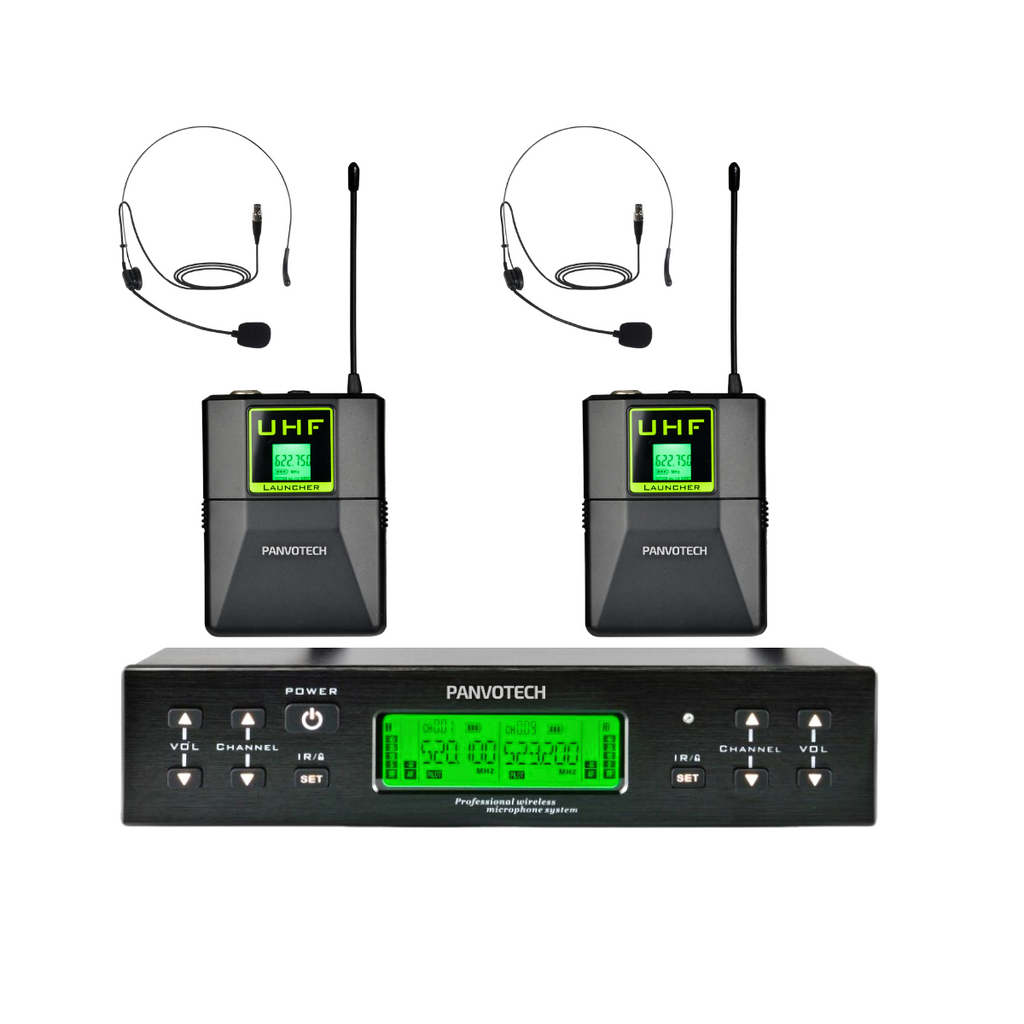

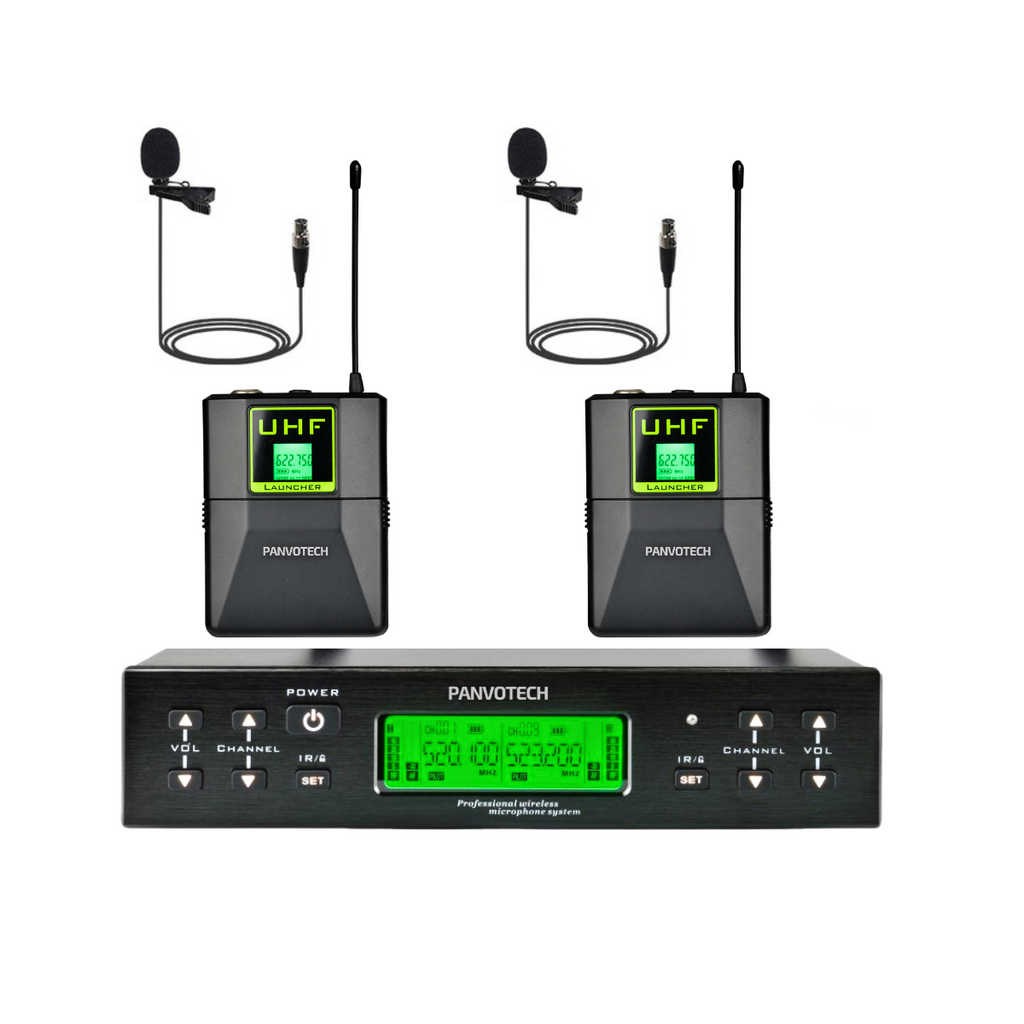

This system is a super quality wireless microphone design for users who require professional performance and budget solution.
The system delivers perfect sound by using low interference UHF frequency band,
and it is strong and reliable to meet various usages from professional stage performance to home use.
Key Features
1. Mini wireless microphone suited for stage performance and home use
2. Double channel fixed frequency wireless microphone
3. Working at low interference UHF band (560-960MHz)
4. ACT channel setup, IR auto scann
5. Total 80*2 selectable frequencies
6. LCD display working status on both receiver and transmitter
7. Smart handheld microphone and rugged half rack size receiver.
8. Reliable SMT technology
9. Dual filter design makes better anti-interference ability
10. External TNC rubber antenna
11. High performance capsule
12. Balanced and line output available.
Specifications
|
Carrier Frequency
|
UHF560-960MHz
|
|
Audio Frequency Response
|
40Hz-15 kHz ± 3dB
|
|
Dynamic Range
|
>100dB
|
|
THD
|
<1.0%
|
|
Working Range
|
>100M
|
Transmitters
|
Max. Transmission Power
|
9 mW
|
|
Max. Deviation
|
± 40 kHz
|
|
Selectable channels
|
160 Channels
|
|
Battery
|
3V (1.5V AA x2)
|
|
Continuous Working Time
|
Up to 8 hours
|
Receiver
|
Power Supply
|
DC 12V/ 800mA
|
|
Power Consumption
|
9W
|
|
Receiving Sensitivity
|
22dBuV
|
|
Dimensions
|
212 x 180 x 44 mm
|
