Description
Introduction

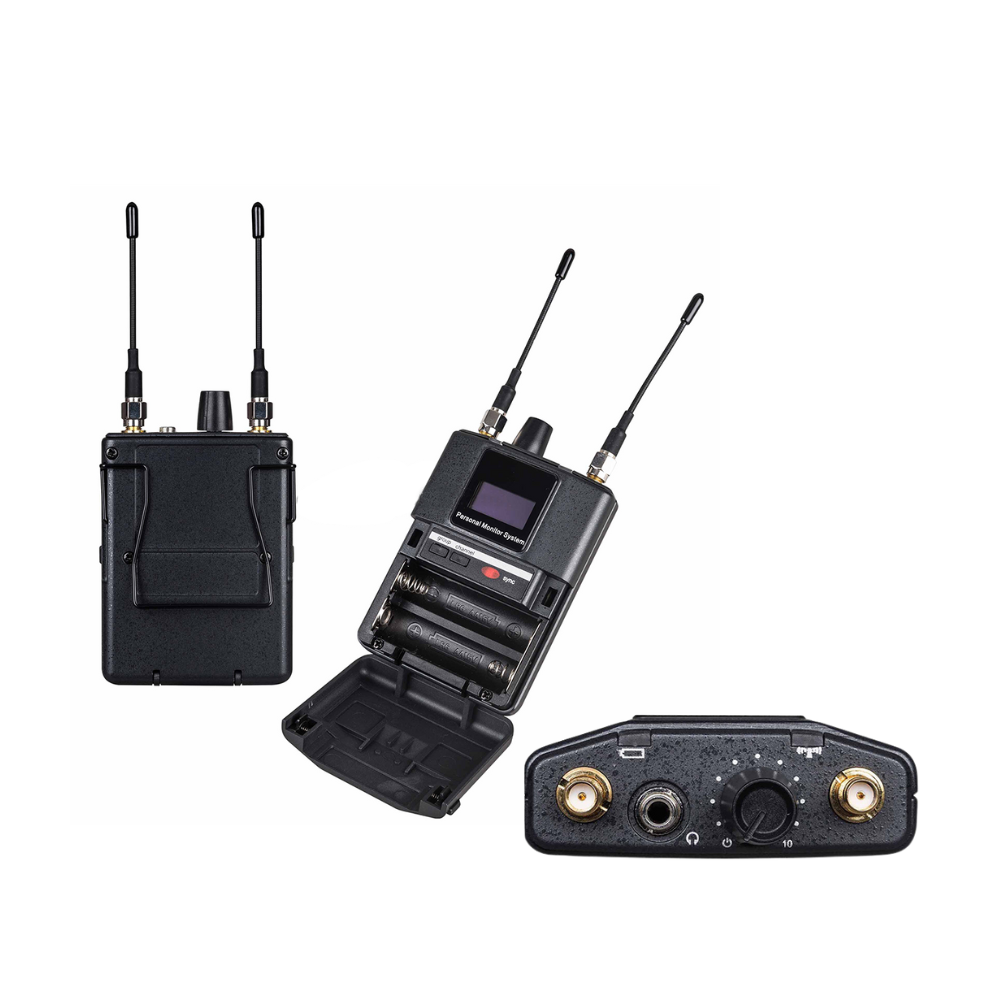

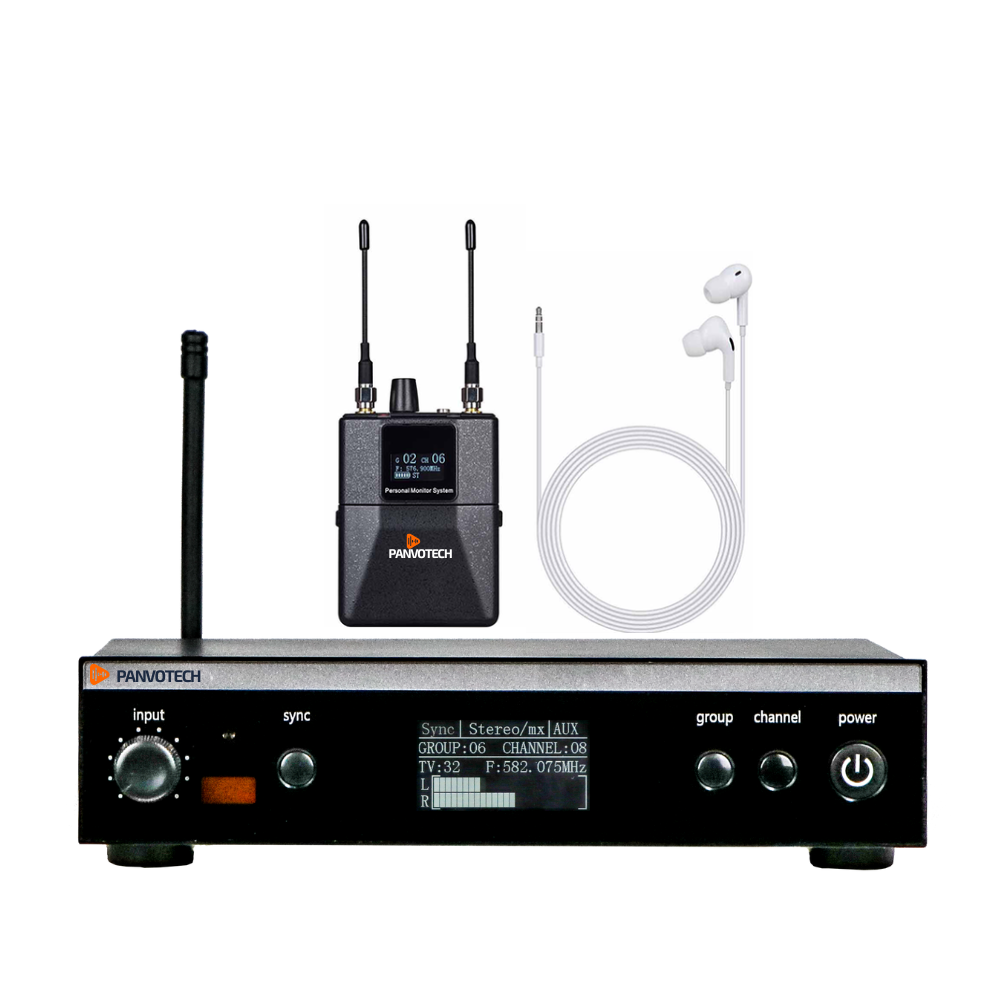

This unit offers musicians & performers the freedom of wireless on-stage monitoring with easy-to-use components. The desktop transmitter sends wireless audio to the bodypack receiver at a maximum distance of up to 300ft. It is preset with 40 selectable frequencies which allows the use to pick a clear & interference-free channel for wireless audio transmission in mono.
Key Features
- UHF band
- 40 preset channels, 4 groups (10 channels in each group)
- Stereo transmission
- Ideal for stage performance & studio recording
Specifications
|
Model Number |
WIEM-300 |
|
Use |
Stage Performance, Studio Recording |
|
Receiving way |
single tuning |
|
Function |
in ear monitor system |
|
Polar Pattern |
Omni-directional |
|
Frequency Range |
UHF band 614-830Mhz |
|
Transmission |
Mono transmission |
|
Channels |
40 preset channels (10 CH in each group) |
|
Transmitter |
Full metal case |
|
AF input |
XLR, 6.3mmφjack |
|
Current consumption |
DC 12V/250mA |
|
Antenna socket |
BNC socket |
|
Sensitivity |
Deviation 25KHz, when connected 7dBuV, S/N>78dB |
|
Working Range |
Over 100M in ideal condition |
