Description
Introduction

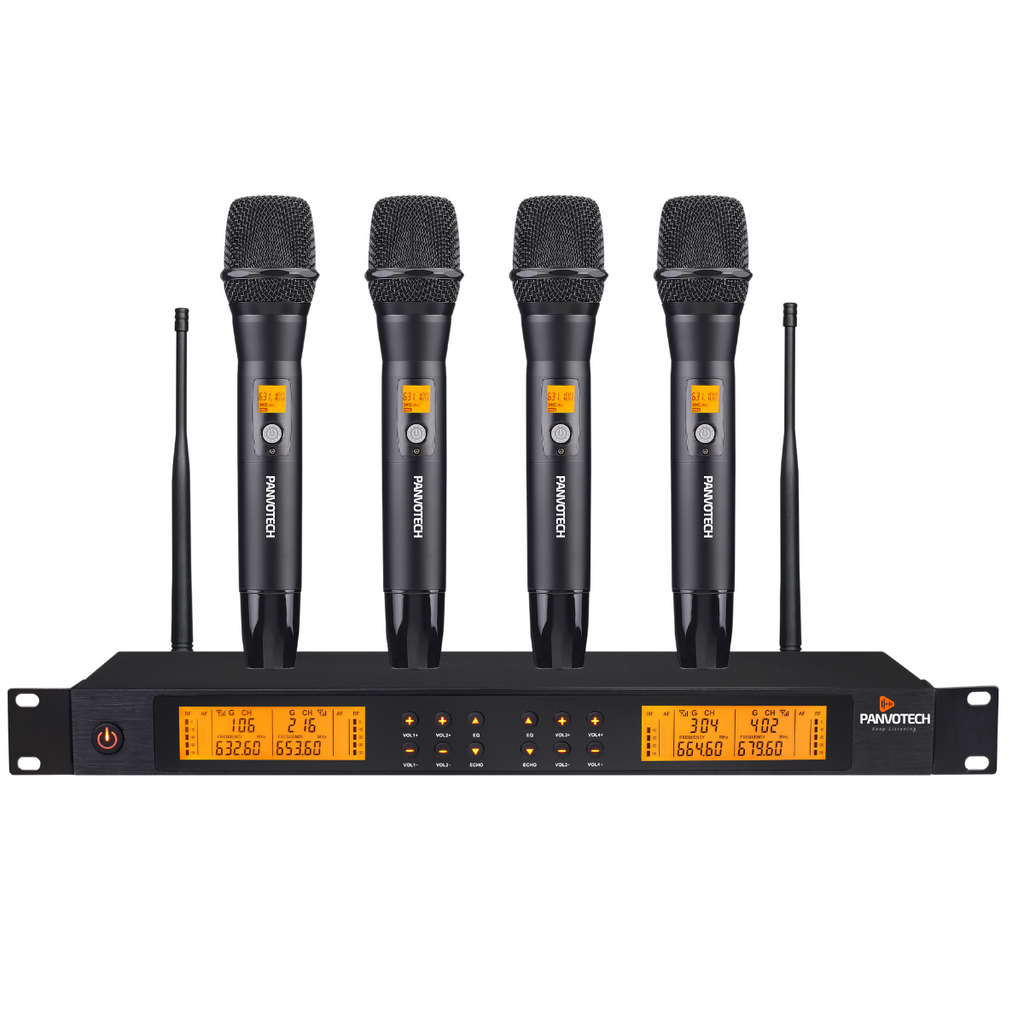

This wireless microphone system is a professional 4 channel wireless microphone designed for users who require professional performance.
The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages.
The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages.
Key Features
- 1. Four-channel UHF wireless microphone system
- 2. PLL synthesized fixed frequency circuit for stability & effortless frequency setup
- 3. RF and audio level indicator on receiver LCD

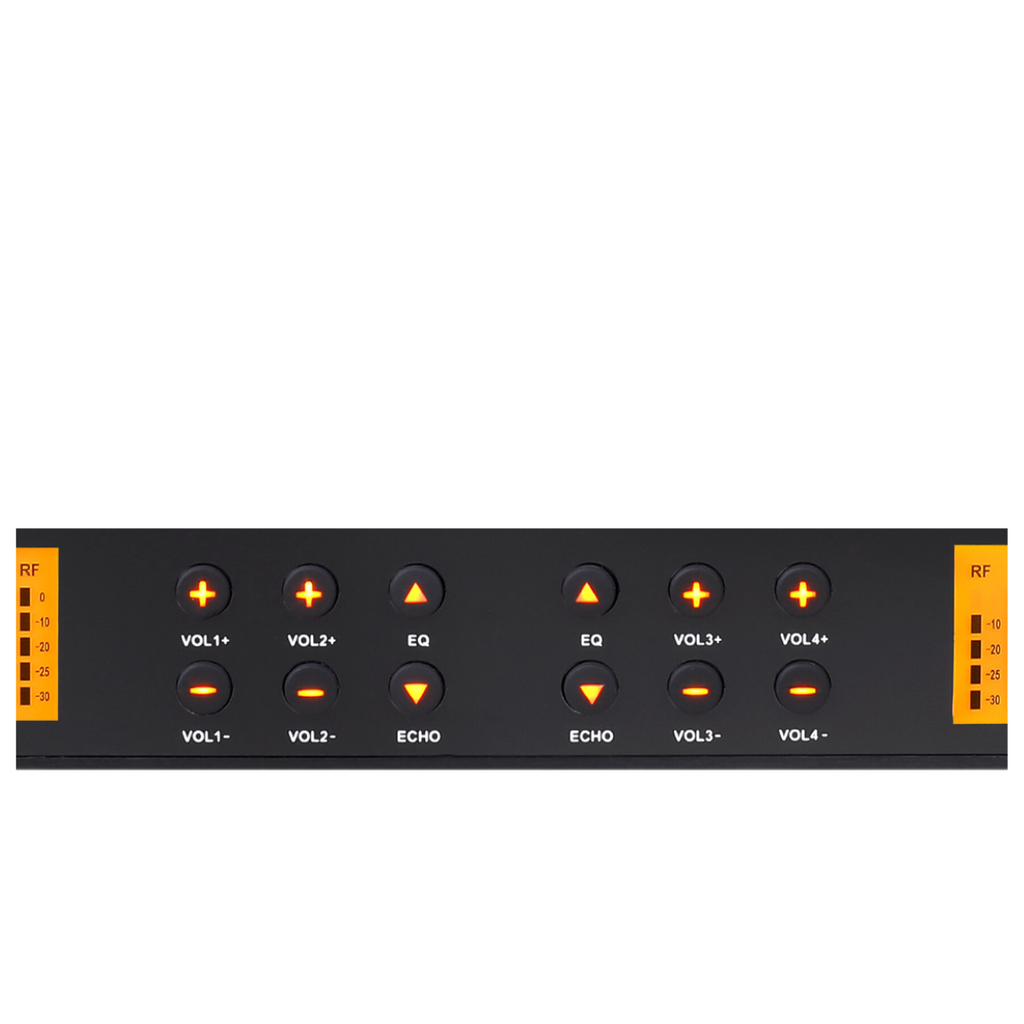

- 4. Individual volume control for each channel
- 5. IEA standard 19" 1U rack mountable receiver chassis
- 6. ABS handheld microphone
- 7. Operation distance up to 80M with no signal drop-out
- 8. Application: Stage performance, club, etc.
Specifications
|
Modulation Mode |
Narrow band, PLL synthesized |
|
Frequency Range |
UHF 500~900MHz |
|
Channel |
Four Channel |
|
Preset Frequencies |
Fixed frequency |
|
Frequency Response |
40Hz~15kHz ± 3dB |
|
Max. Deviation Range |
±80kHz (with level limiting) |
|
T.H.D. |
< 1.0% @ 1kHz |
|
S/N |
>108dB |
|
Working Range |
Up to 80m |
|
RF Carrier Stability |
±0.005% (-10℃-50℃) |
Receiver
|
Chassis |
19" 1U rack mountable |
|
Antenna |
Rear panel, detachable |
|
Dimension （W x H x D) |
420 x 44 x 183 mm |
|
Power supply |
DC 12V, 600mA |

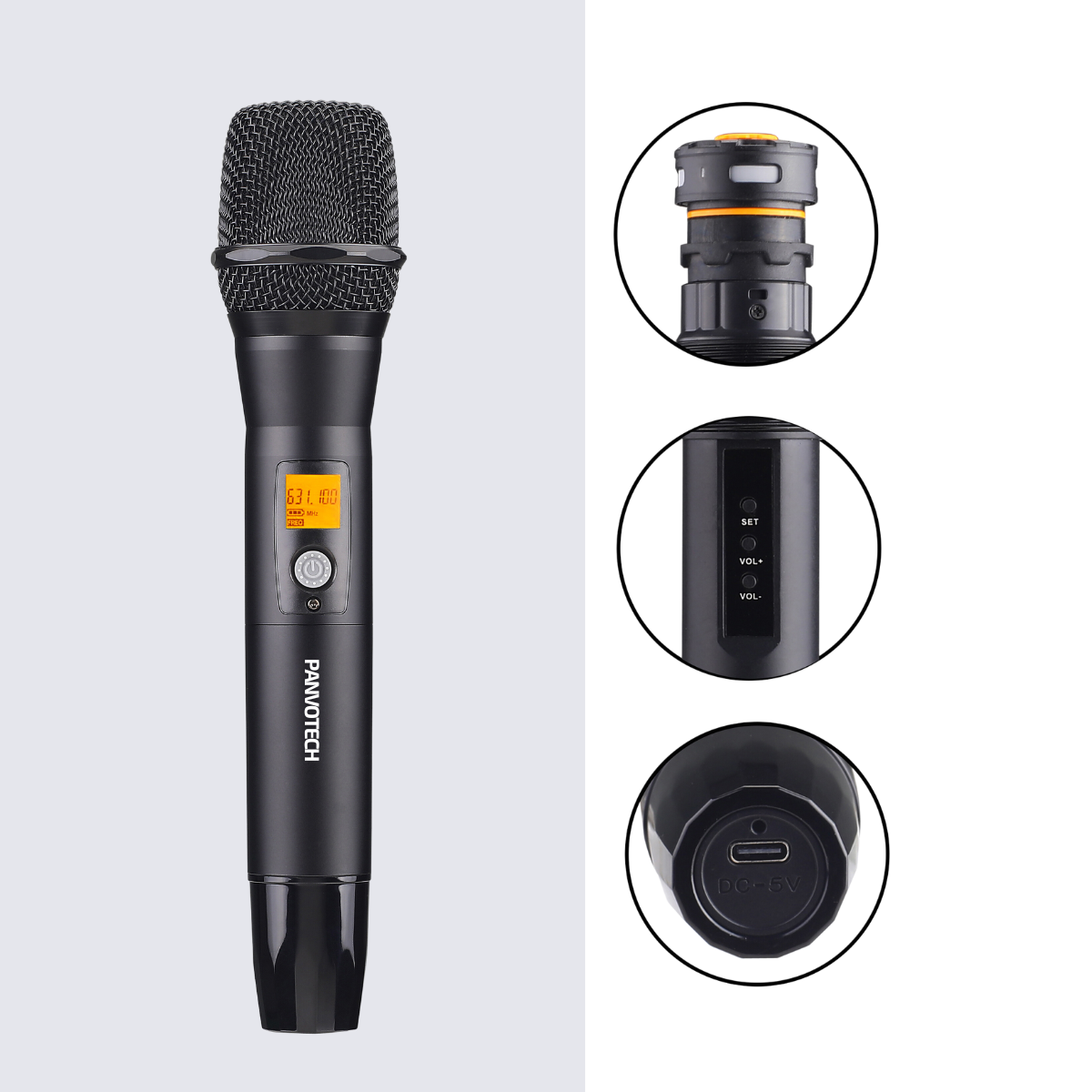

Handheld Microphone
|
Carrier Frequency Power |
30mw |
|
Dimension |
255 x φ 120 mm |
|
Cartridge Type |
Dynamic |
|
Power supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |
