Description
Introduction

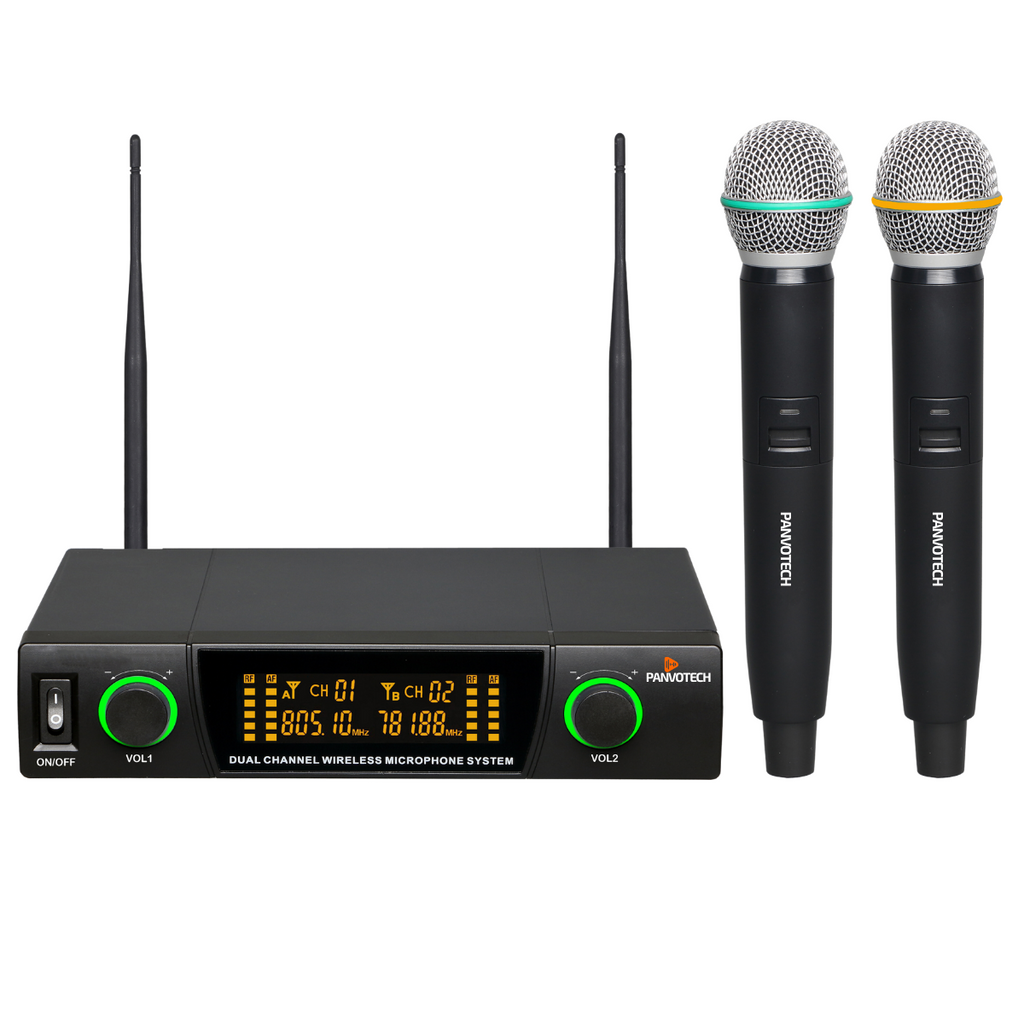

This dual wireless microphone system is budget-friendly and high quality mic set. Best for school, church, club, home singing, anywhere you want quality sound with stable performance.
Key Features
- 1. Dual-channel UHF wireless microphone system
- 2. UHF PLL synthesized, fixed frequency
- 3. Durable ABS receiver housing and handheld microphone
- 4. Operation distance up to 60M with no signal drop-out
Specification
|
Modulation Mode |
UHF PLL synthesized |
|
Frequency Range |
UHF 500~900MHz |
|
Channel |
Dual Channel |
|
Preset Frequencies |
2 preset frequencies |
|
Frequency Response |
75Hz~18kHz ± 3dB |
|
Max. Deviation Range |
±80kHz (with level limiting) |
|
T.H.D. |
< 1.0% @ 1kHz |
|
S/N |
>108dB |
|
Working Range |
Up to 60m |
|
RF Carrier Stability |
±0.005% (-10℃-50℃) |

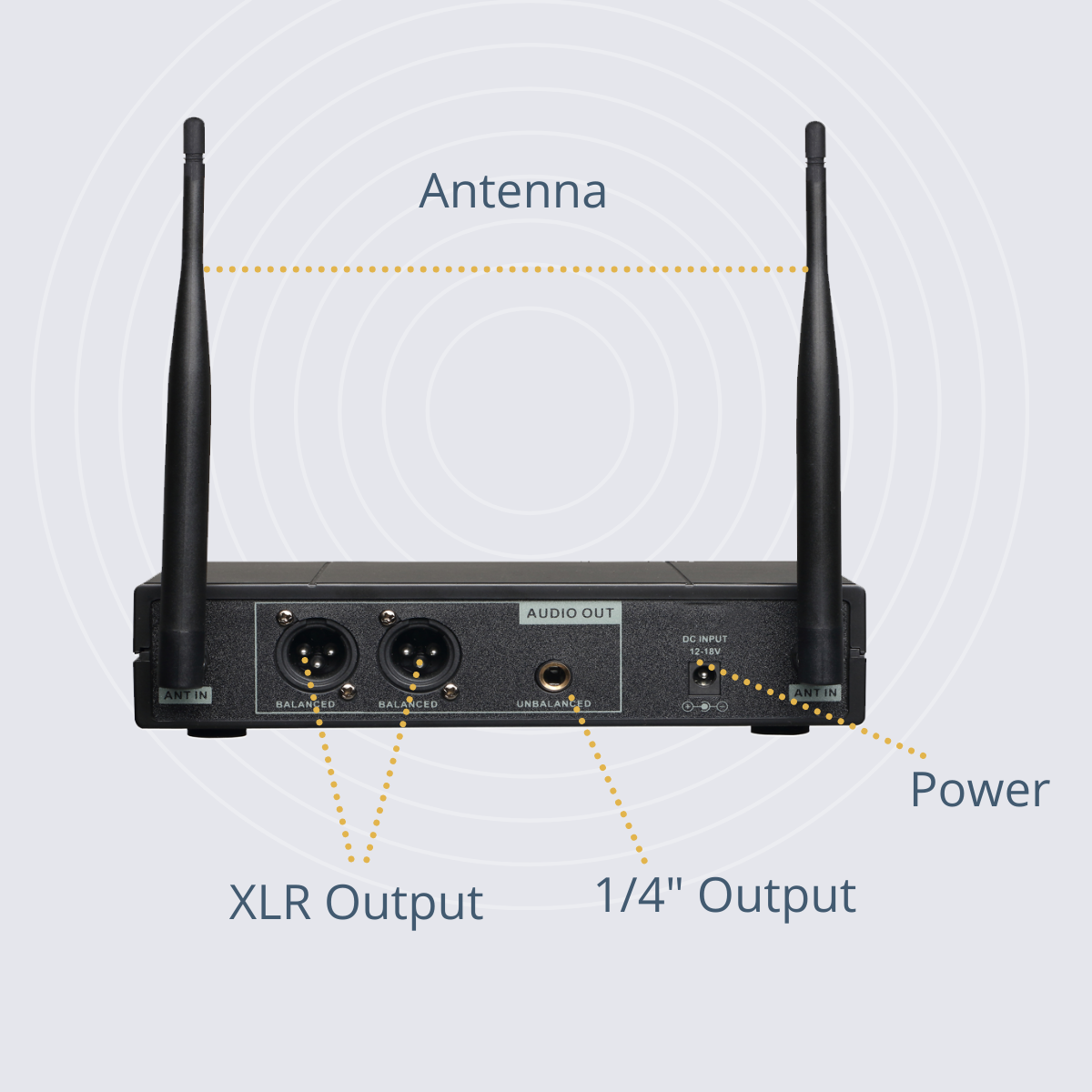

Receiver
|
Chassis |
19" 1/2U rack mountable |
|
Antenna |
Rear panel, un-detachable |
|
Dimension |
（W x H x D) 210 x 44 x 183 mm |
|
Power supply |
DC 12V, 600mA |

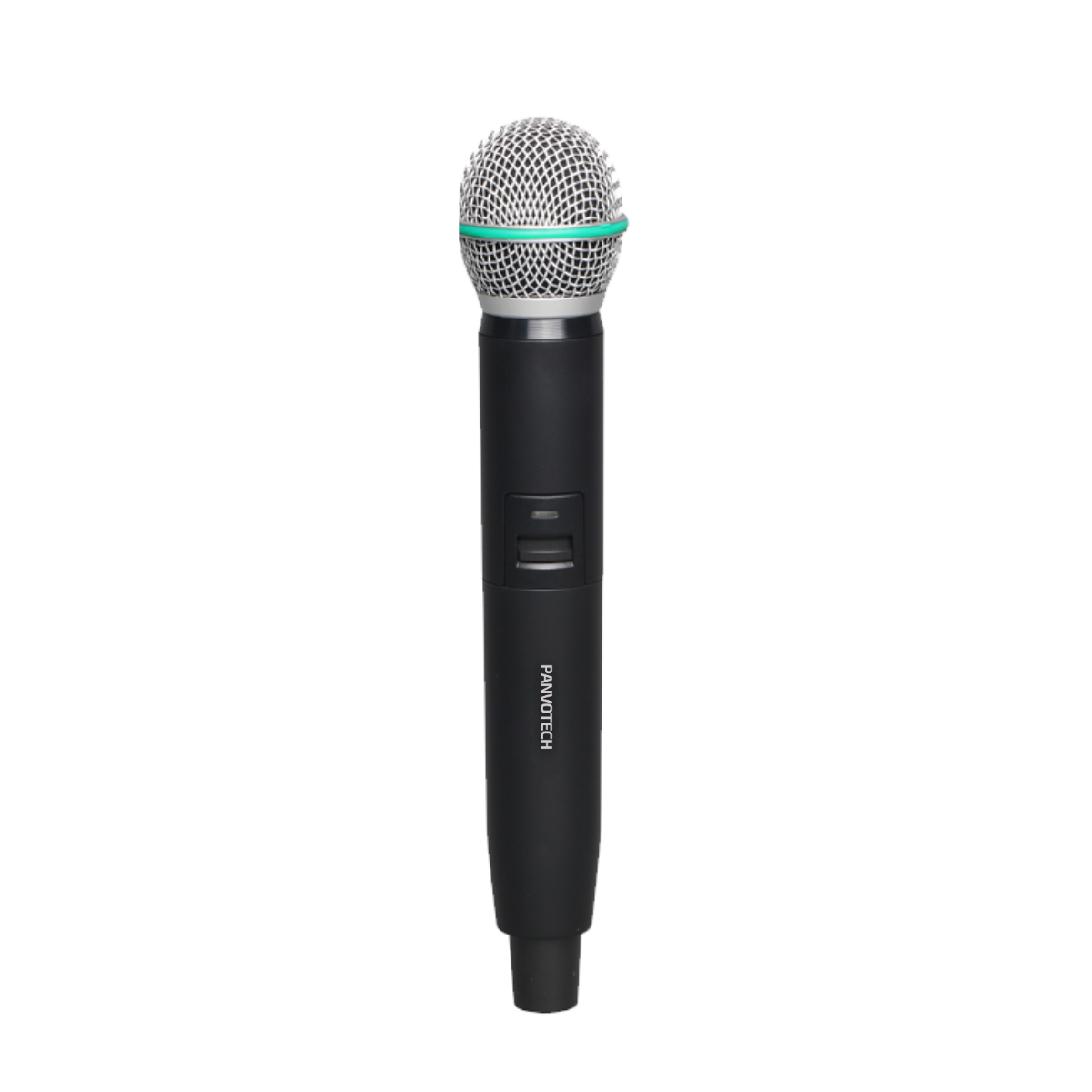

Handheld Microphone
|
Carrier Frequency Power |
30mw |
|
Dimension |
255 x φ 120 mm |
|
CartridgeType |
Dynamic |
|
Power Supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |

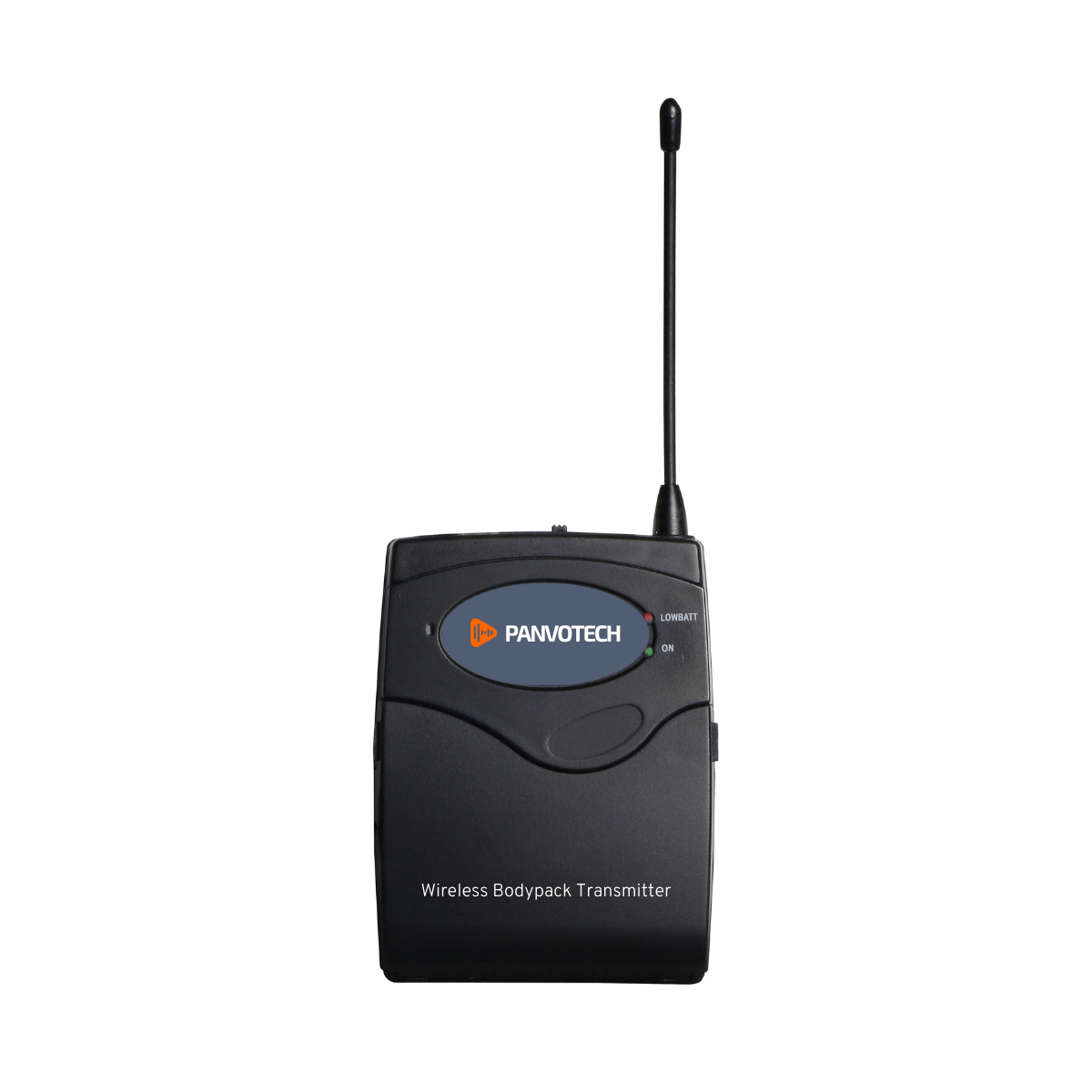

Bodypack Transmitter
|
Carrier Frequency Power |
30mw |
|
Dimension （W x H x D) |
190 x 20 x 65 mm |
|
Cartridge Type |
Condenser |
|
Power Supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |
