Description
Introduction

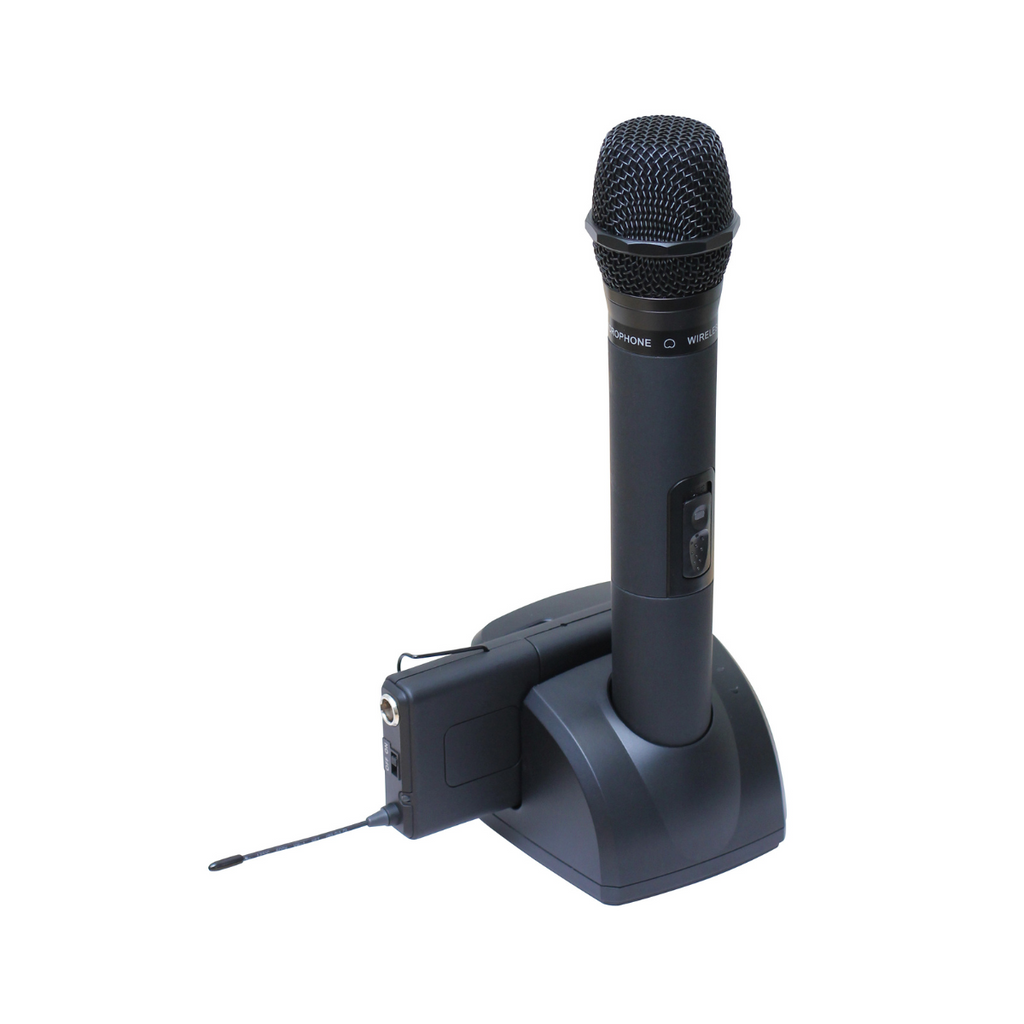

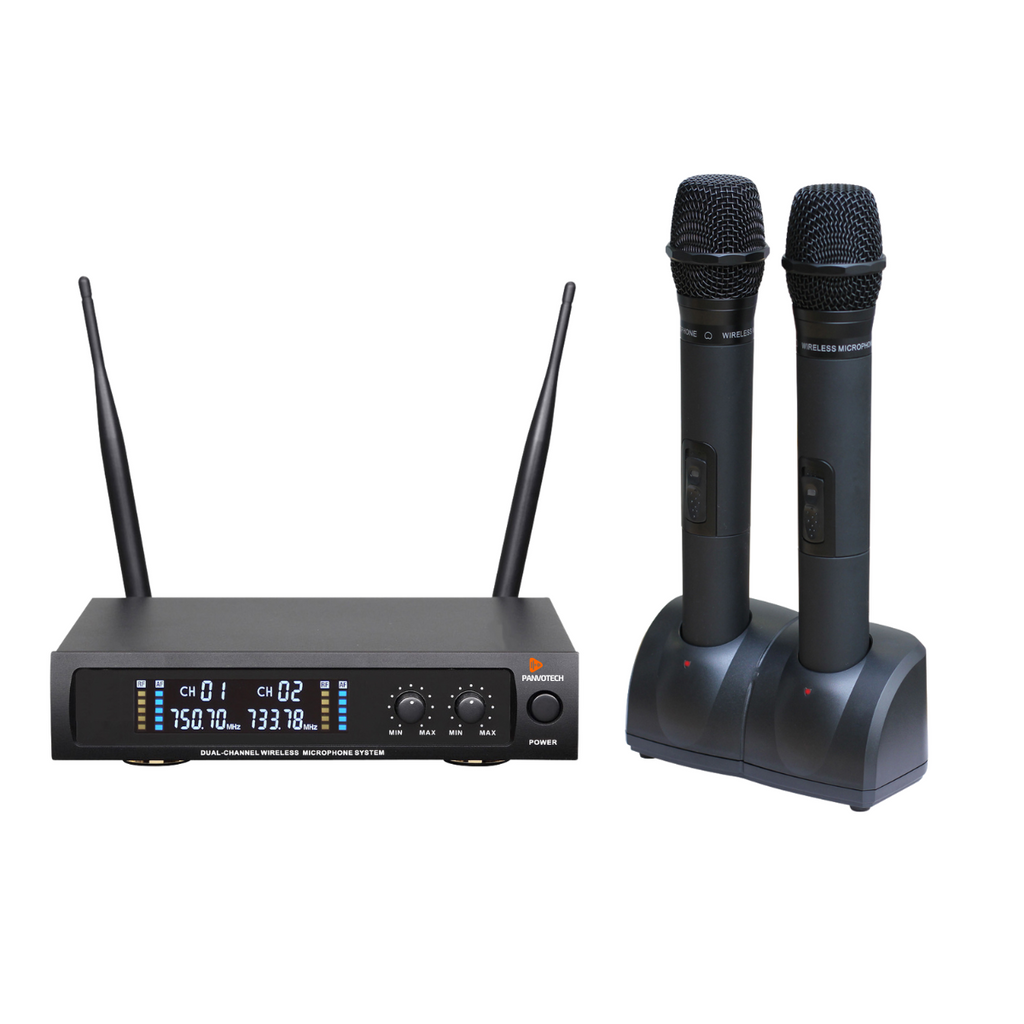

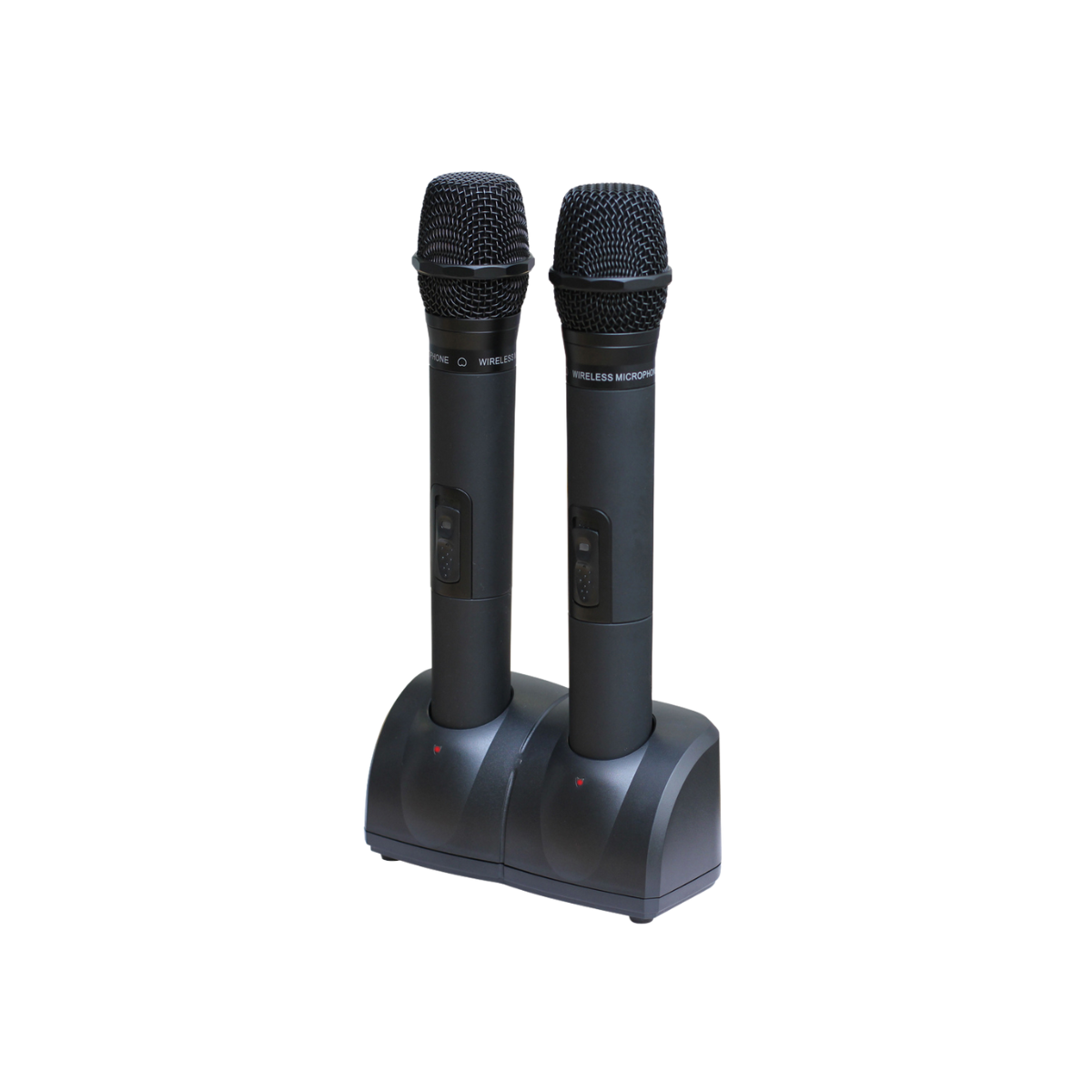

This dual handheld wireless microphone system is designed for professional application. Pick up to go anytime you want with the charger for handheld mic. Quality sound with high performance makes it perfect choice for anywhere you want wireless sound transmission.
Key Features
- 1. UHF chargeable wireless microphone
- 2. Full metal receiver case.
- 3. High quality capsule.
- 4. Diversity technology offers superior reception quality.
- 5. Backlit LCD screens on receiver & transmitter display:
Channel, group, transmitter battery level, RF, Audio, SQ level meters, etc. - 6. Dual "PiloTone & NoiseLock" circuits minimize interference.
- 7. All controls are intuitive and easily setup via buttons.
- 8. Reliable RF & transparent audio performance.
- 9. 80 m (265 ft.) operating range.
- 10. 100% SMT technics ensure high performance.
Specifications
|
Channel |
Dual channel |
|
Chassis |
EIA Standard 19” 1/2U (212 x 180 x 44 mm) |
|
Frequency range |
UHF560-960MHz |
|
Frequency response |
40Hz-15 kHz ± 3dB |
|
Antenna |
Real panel (Detachable) |
|
Stability |
±0.005% (-10~60°C) |
|
Sensitivity |
22dBuV |
|
S/N ratio |
>106dB(A) |
|
T.H.D. |
<1.0% |
|
RF power |
9 mW |
|
Power supply |
DC 12V/ 800mA |
|
Operation range |
80M (265 ft.) |
|

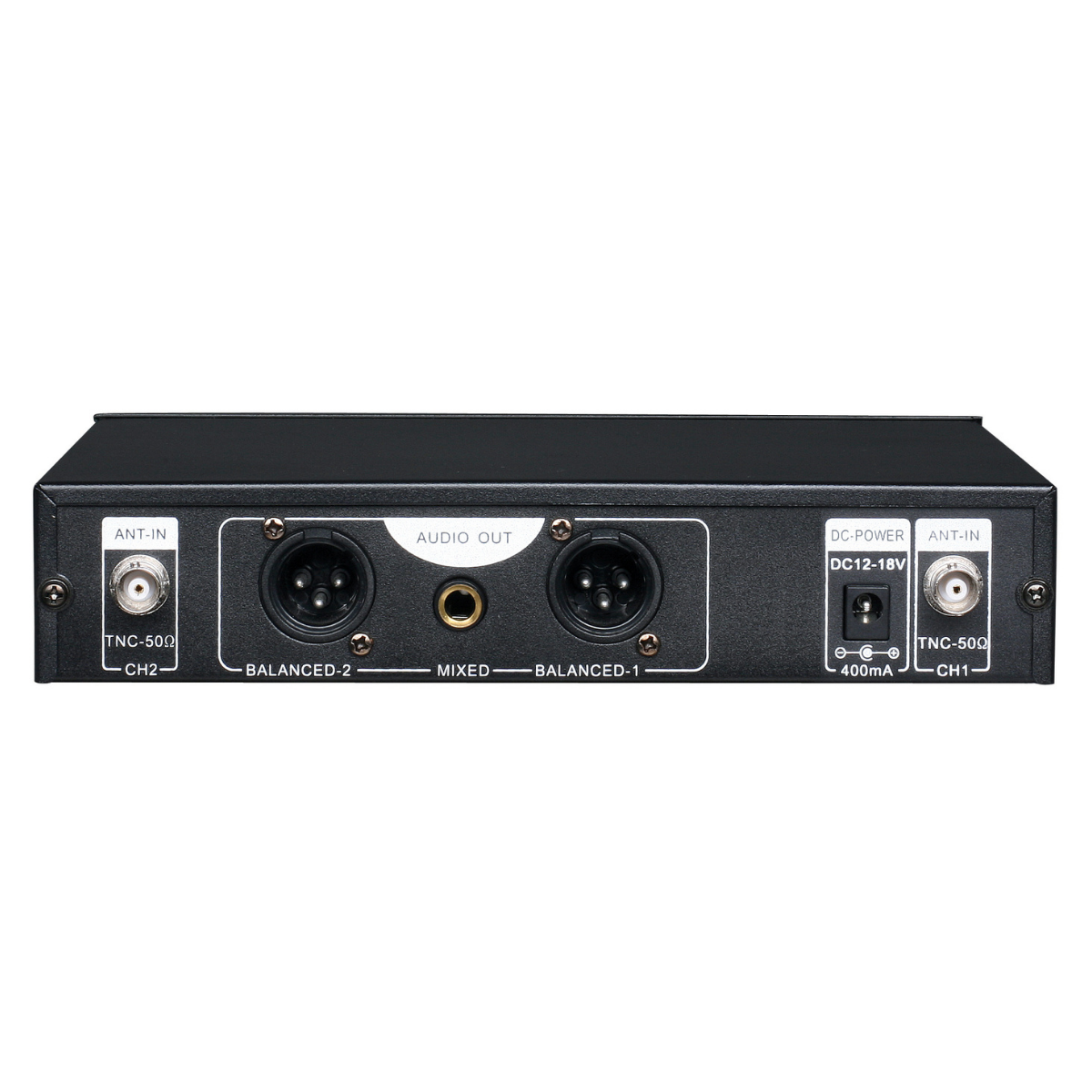

Audio output |
Balanced & unbalanced |
|
Battery |
3V (1.5V AA x2) |
|
Battery working time |
Up to 8 hours |
