Description
Introduction
The PU-4002 wireless microphone system delivers 8 transmitters with multi selectable frequencies. 1U rack unit design receiver case with dynamic gain level lights, independence volume control, and carry handle make it a perfect choice for church, theatre, stage, etc. Quality sound with high performance gives you the confidence you shall have.
Key Features
- 1. UHF 4 channel wireless microphone system
- EIA standard 1U rack mountable receiver chassis
- Rugged metal transmitter housing
- PLL with high-precision quartz crystal, coupled with MCU control delivers high stability.
- IR auto scan & ACT channel sync setup
- Comes with 4 balanced output & 1 unbalance output
- Advance digital pilot enjoys anti-interference and superior reception.
- High sensitivity and superior sound quality
- SMT technics delivers high performance.
Specifications
|
Modulation Mode |
Digital Frequency Modulate |
|
Frequency Range |
UHF 500~900MHz |
|
Channel |
Four Channel |
|
Preset Frequencies |
50*4 selectable frequencies |
|
Frequency Response |
75Hz~18kHz ± 3dB |
|
Max. Deviation Range |
±80kHz (with level limiting) |
|
T.H.D. |
< 1.0% @ 1kHz |
|
S/N |
>108dB |
|
RF Carrier Stability |
±0.005% (-10℃-50℃) |
Receiver
|
Chassis |
19" 1U rack mountable with carrying ear |
|
Antenna |
Rear panel, detachable |
|
Dimension （W x H x D) |
420 x 44 x 183 mm |
|
Power supply |
DC 12V, 600mA |

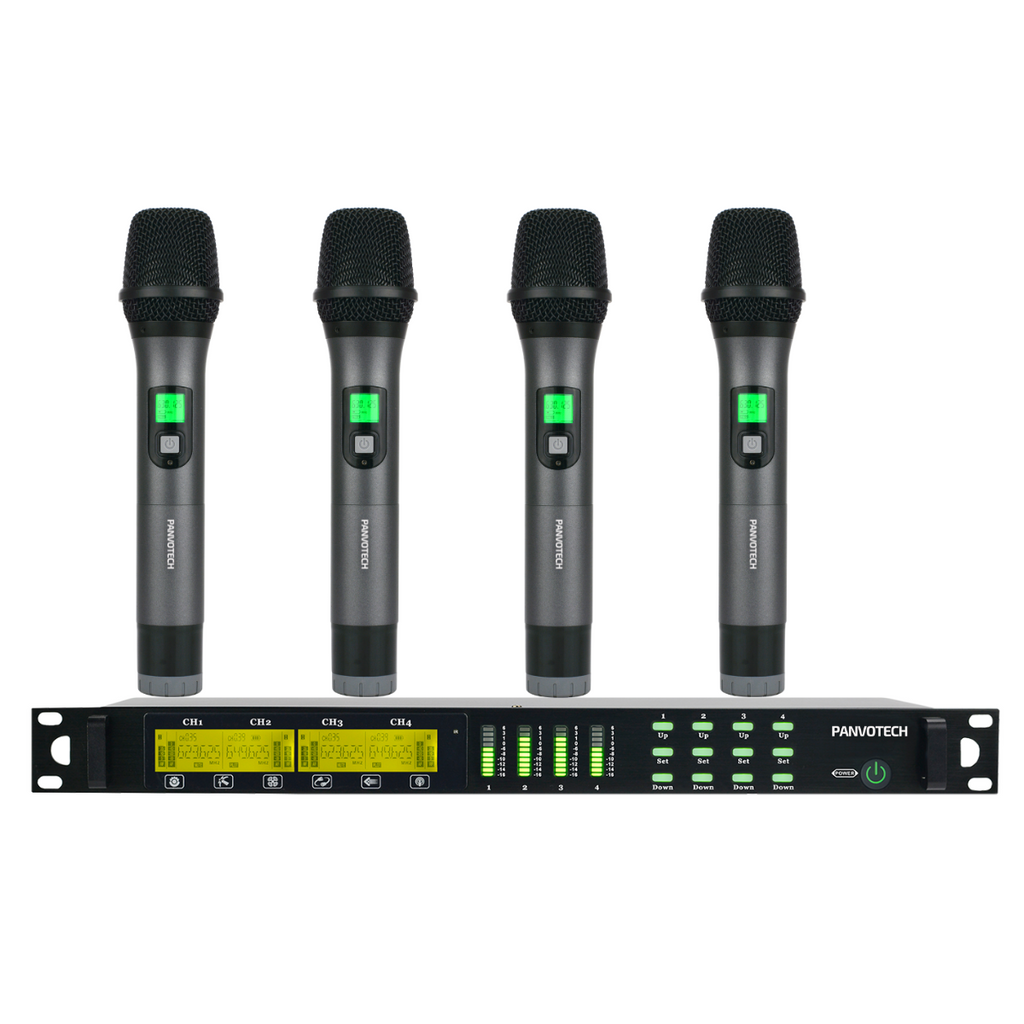

Handheld Microphone
|
Carrier Frequency Power |
30mw |
|
Dimension |
255 x φ 120 mm |
|
CartridgeType |
Dynamic |
|
Power Supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |

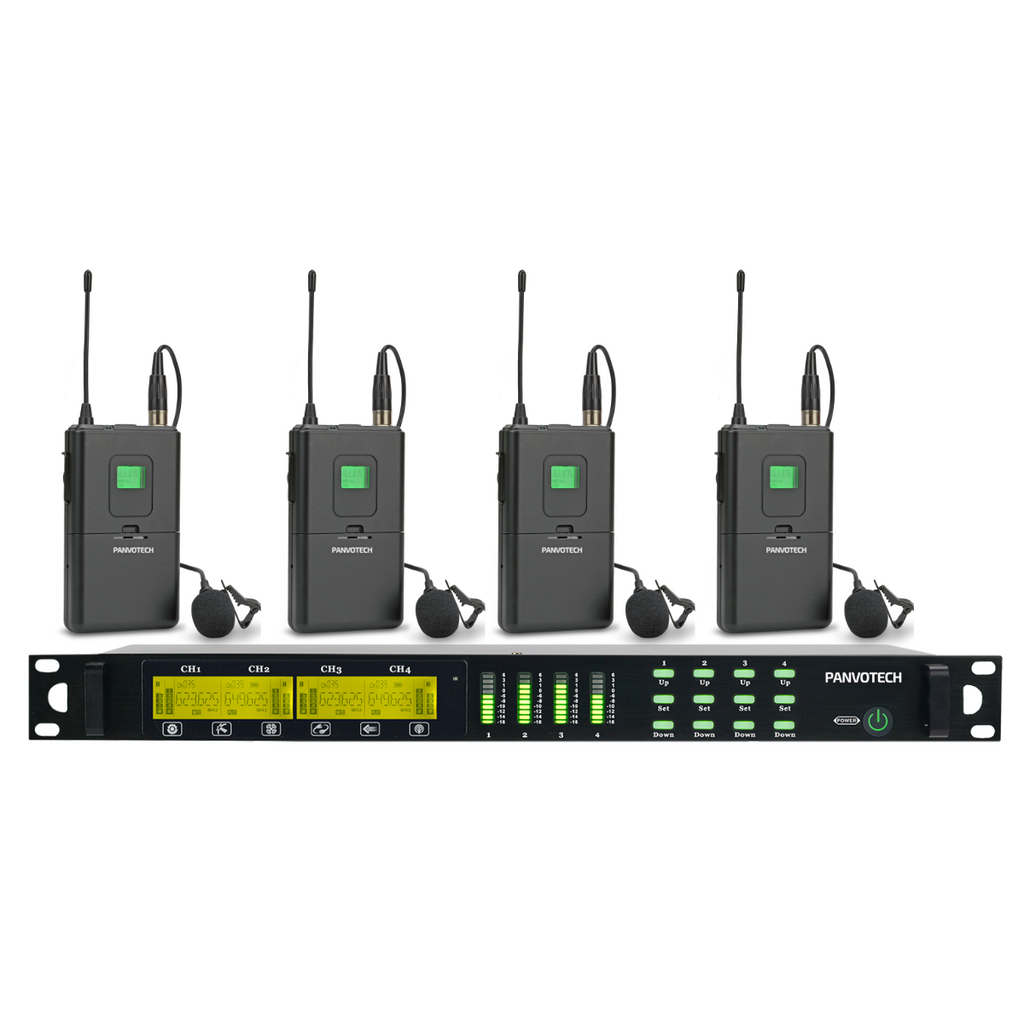

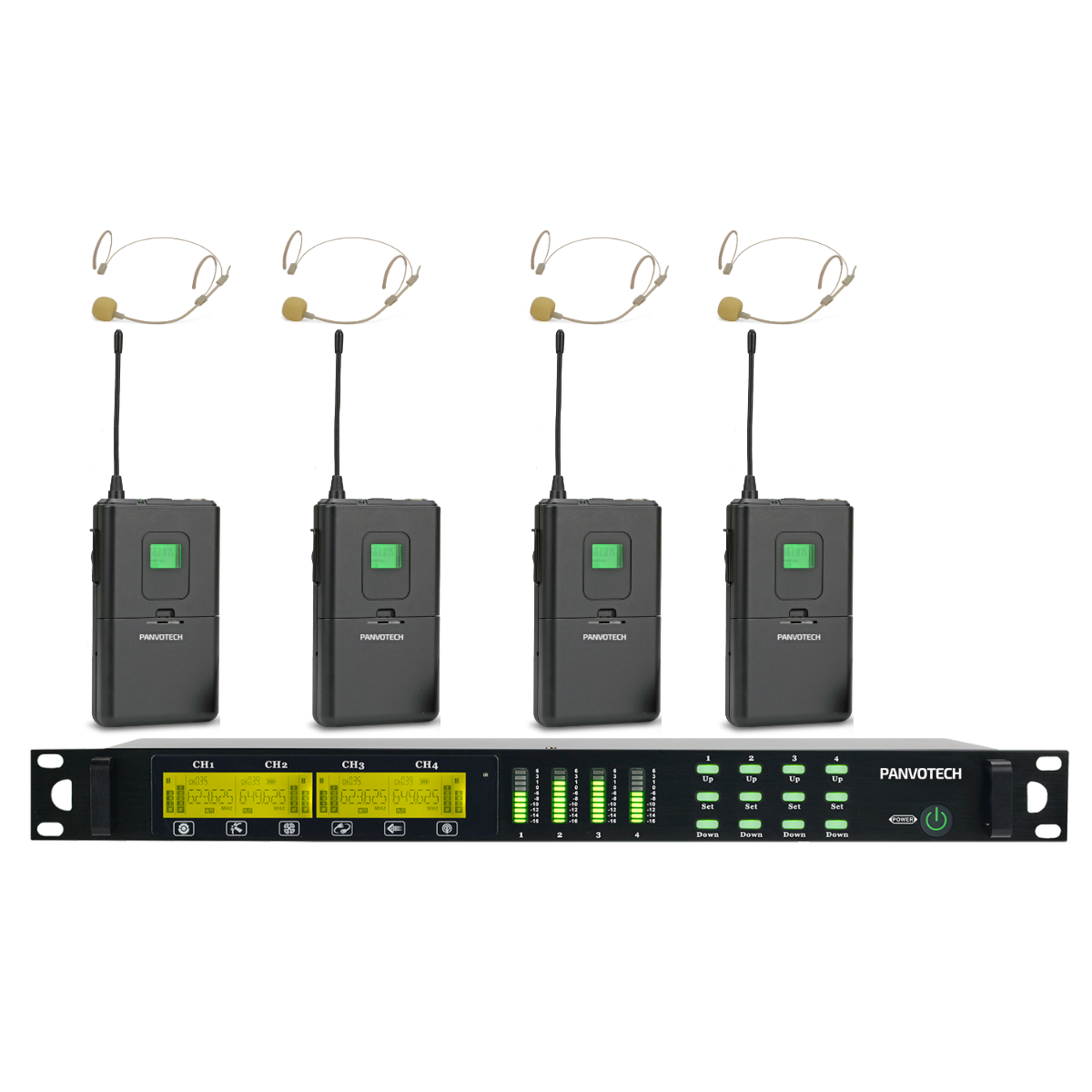

Bodypack Transmitter
|
Carrier Frequency Power |
30mw |
|
Dimension （W x H x D) |
190 x 20 x 65 mm |
|
Cartridge Type |
Condenser |
|
Power Supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |

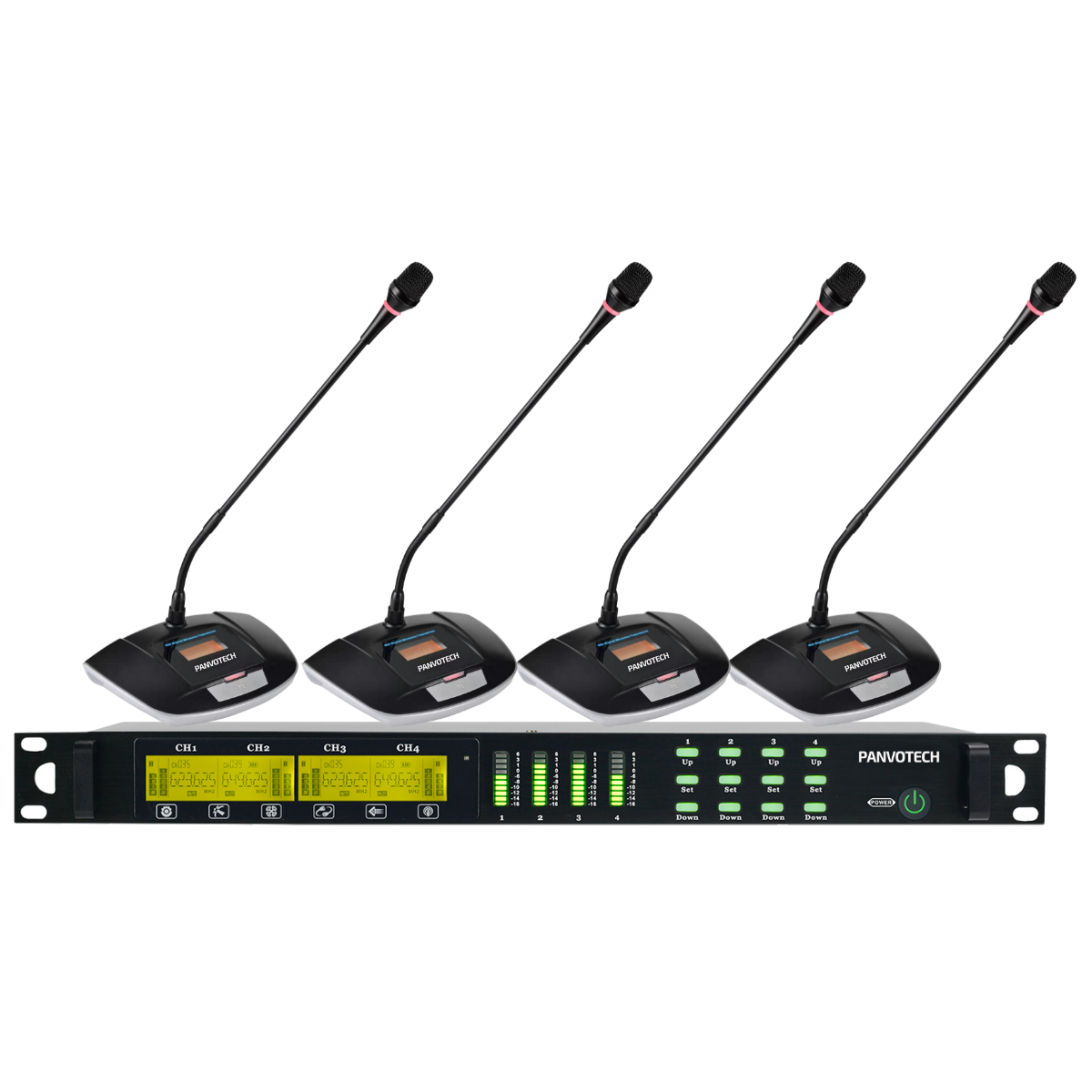

Table Microphone
|
Carrier Frequency Power |
30mw |
|
Goonseneck length |
42 mm |
|
Cartridge Type |
Dynamic |
|
Power Supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |
