Description
Introduction
Quality sound & high performance, ideal for stage performance, live event, etc.
Key Features
-
1. Dual-channel UHF wireless microphone system
-
Stable digital modulation circuitry
-
Preset 100 selectable frequencies in each channel
-
PLL synthesized, frequency auto paring via IR
-
IEA standard 19" 1U rack mountable receiver chassis
-

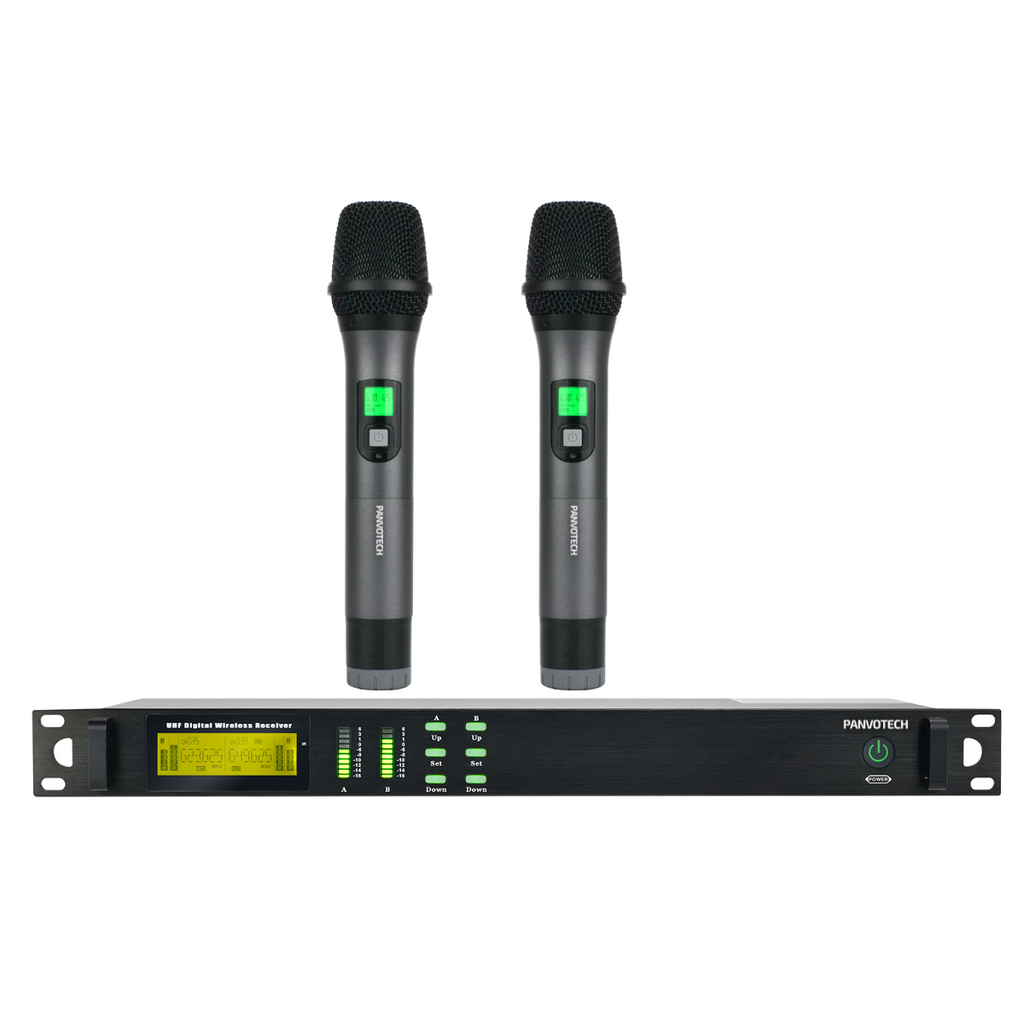

Sturdy metal handheld microphone
-
Operation distance up to 80M with no signal drop-out
Specification
|
Modulation Mode |
Digital Frequency Modulate |
|
Frequency Range |
UHF 500~900MHz |
|
Channel |
Dual Channel |
|
Preset Frequencies |
100*2 selectable frequencies |
|
Frequency Response |
75Hz~18kHz ± 3dB |
|
Max. Deviation Range |
±80kHz (with level limiting) |
|
T.H.D. |
< 1.0% @ 1kHz |
|
S/N |
>108dB |
|
Working Range |
Up to 80m |
|
RF Carrier Stability |
±0.005% (-10℃-50℃) |
Wireless Receiver
|
Chassis |
19" 1U rack mountable with carrying ear |
|
Antenna |
Rear panel, detachable |
|
Dimension （W x H x D) |
420 x 44 x 183 mm |
|
Power supply |
DC 12V, 600mA |
Handheld Transmitter
|
Carrier Frequency Power |
30mw |
|
Dimension |
255 x φ 120 mm |
|
CartridgeType |
Dynamic |
|
Power Supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |
Bodypack Transmitter
|
Carrier Frequency Power |
30mw |
|
Dimension （W x H x D) |
190 x 20 x 65 mm |
|
Cartridge Type |
Condenser |
|
Power Supply |
2 x AA Size |
|
Working Time |
Up to 8 hrs |
