Description
Introduction
Have a problem with multiple pile-up wireless systems & annoying interference in a live event?

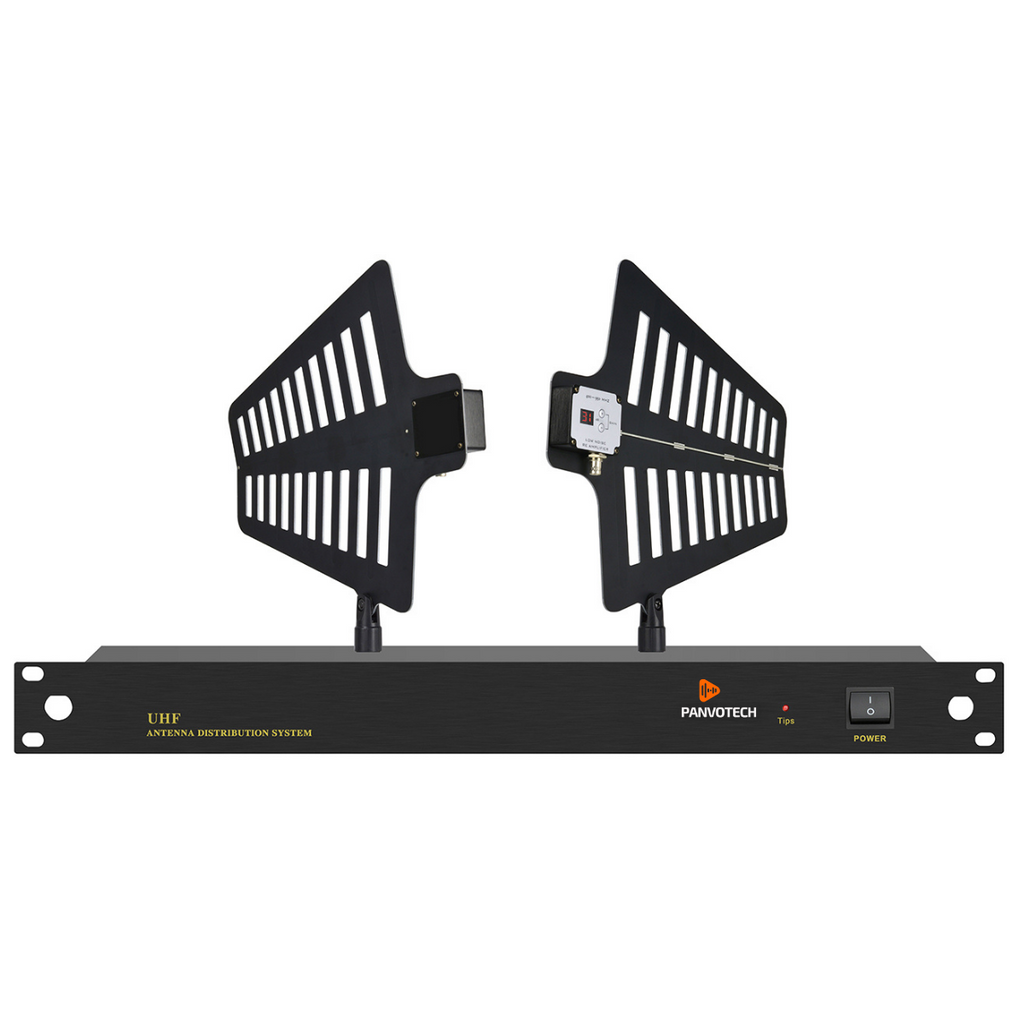

The Panvotech UA-450 can strengthen your antenna power & offering stable wireless transmission,
while decreasing possibility of signal dropping out, best for stage performance, live show, and other outdoor events.
Key Features
- 1. 5 way distribution system with 500-950MHz

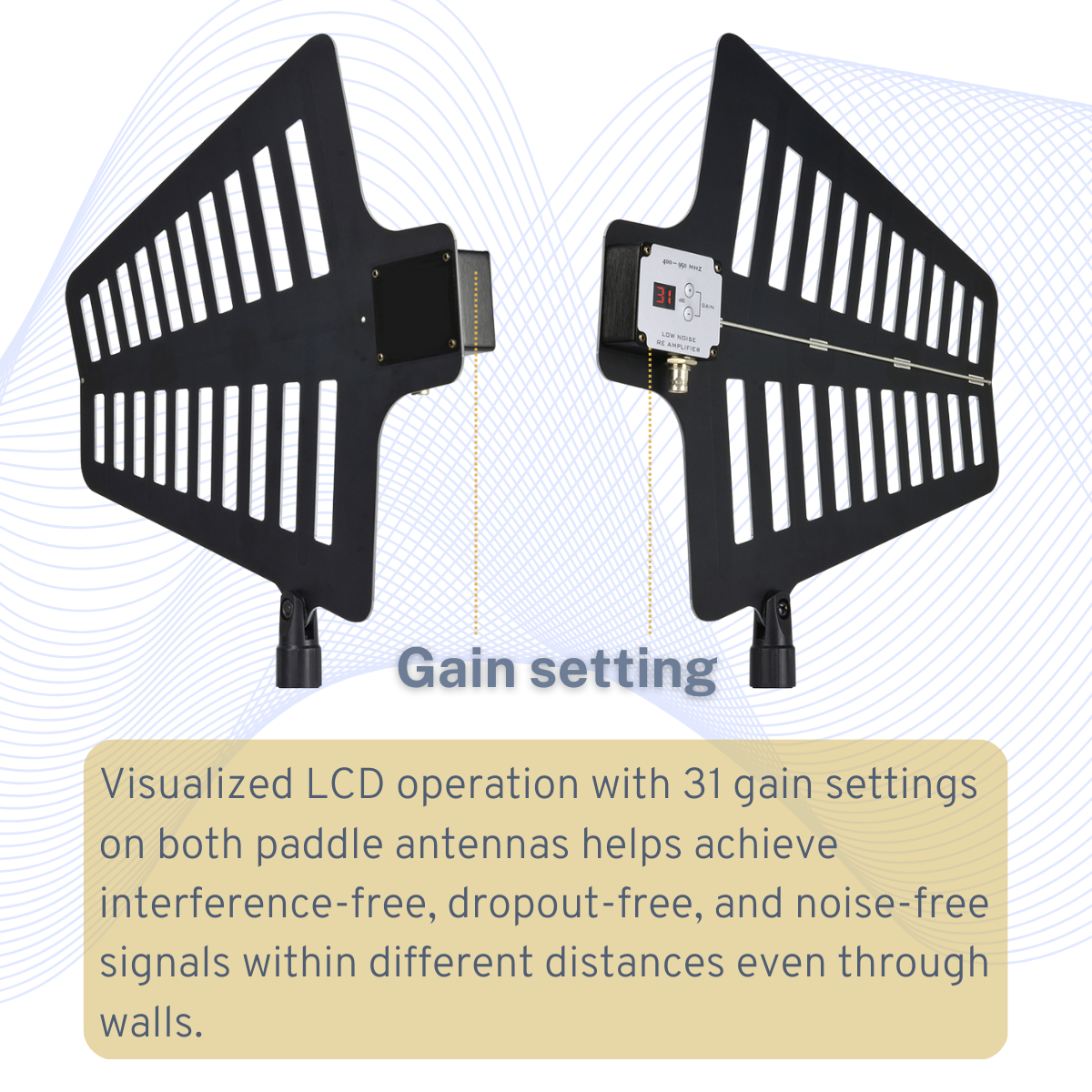

- 2. Adjustable gain switch for inversion loss compensation
- 3. Increases receiving range up to extra 300ft
- 4. Each set supports 5 sets of dual wireless receivers

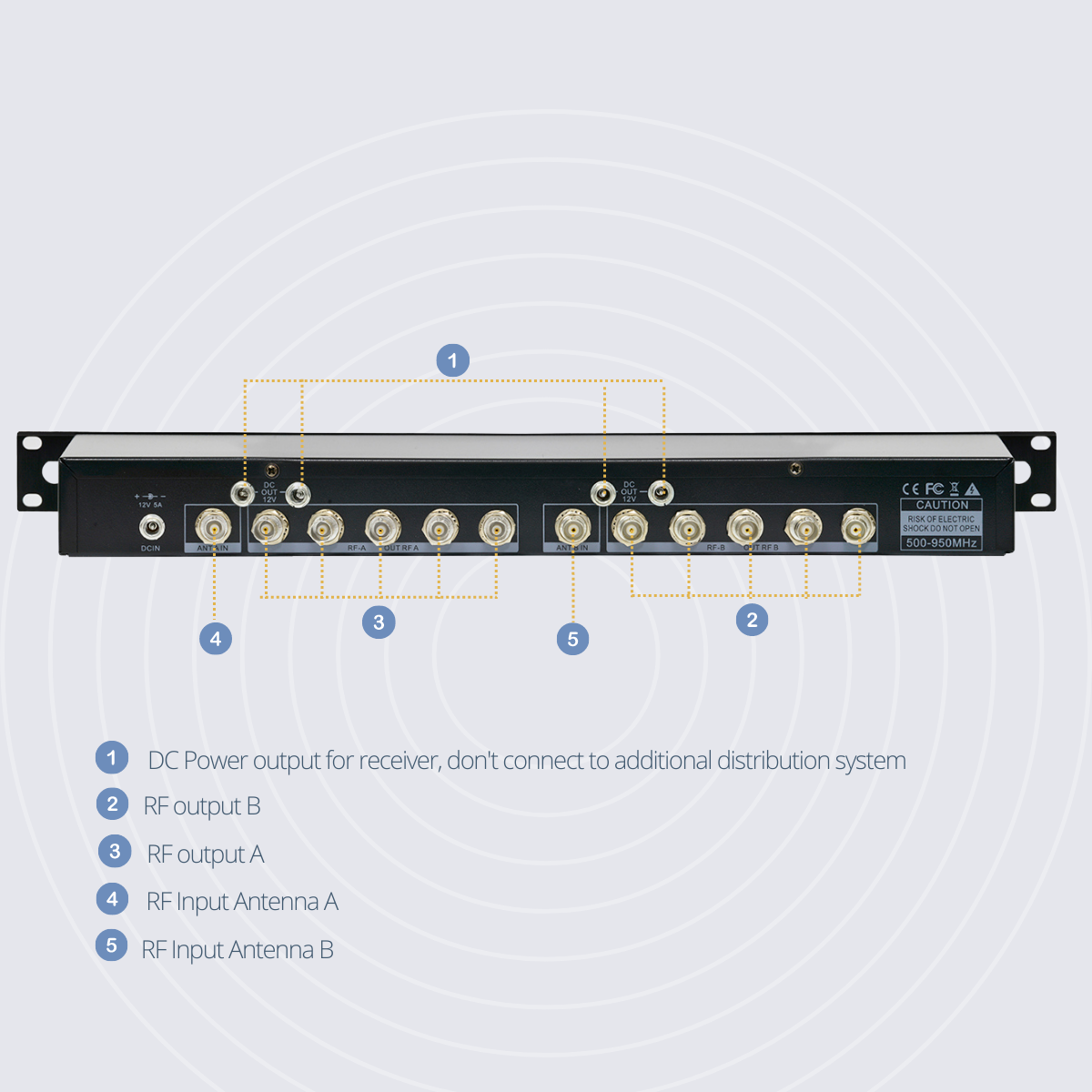

- 5. Cascade ports & external power allows use of multisets by pile-up
- 6. Directional antennas ensure better coverage & transmission

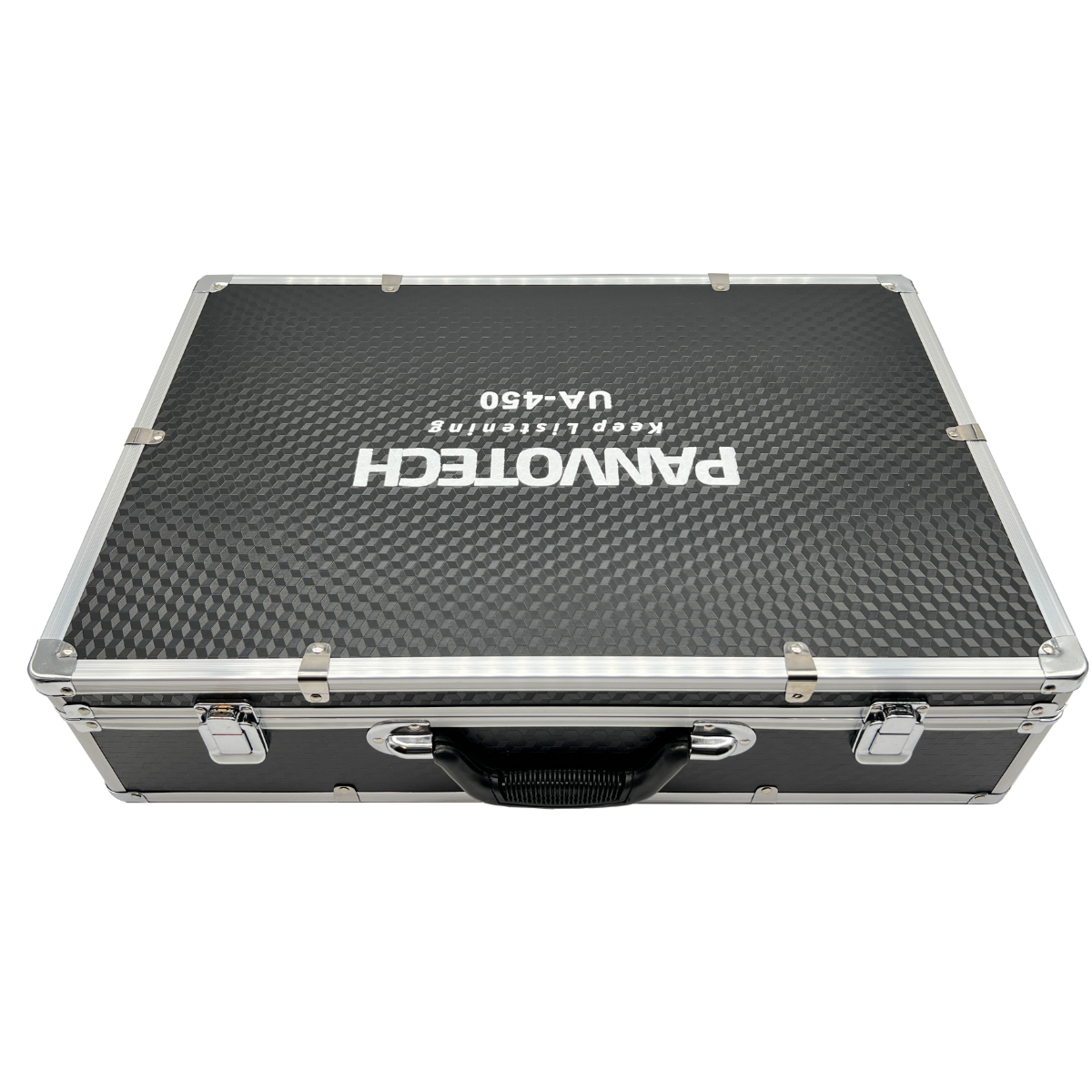

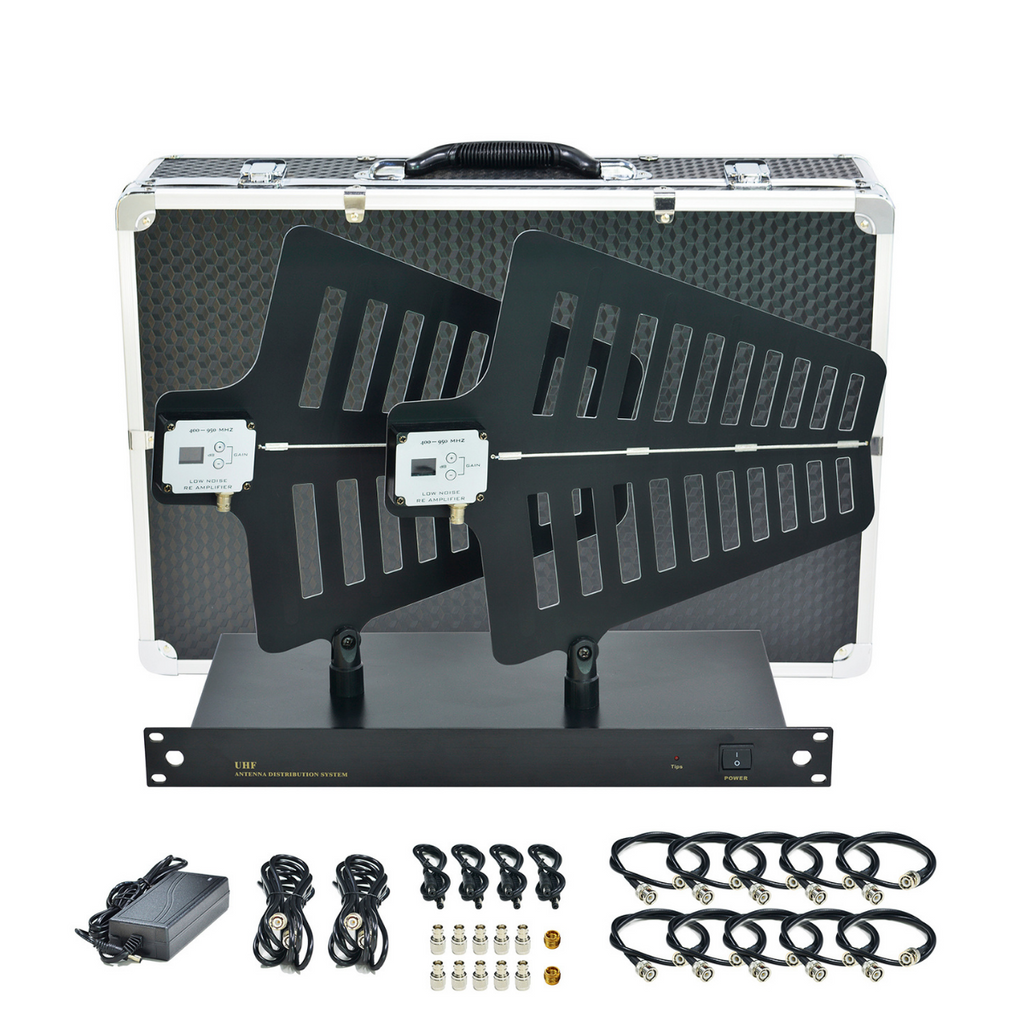

- 7. All sturdy metal housing system comes necessary cables
Specifications
|
Frequency Range |
450 - 900 MHz |
|
Working Current |
DC 100mA±10mA |
|
Working Power |
DC 10-15V |
|
Bias Voltage |
DC 12V±1V |
|
Bias Current |
DC 100mA±10mA |
|
DC Output |
4 Outputs. Max 2.5A |
|
Gain |
-1~0.5db±1db |
|
Antenna Connector |
BNC (10 ports) |
|
Bias Connector |
BNC (2 ports) |
|
lmpendence |
50Ω |
|
Working Temperature |
-10oC~40oc |
